Engine Mount Replacement - Left Side (Two-Wheel Drive)

Engine Mount Replacement - Left Side (Two-Wheel Drive)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the front tire and wheels. Refer to Tire and Wheel Removal and Installation (Service and Repair).
3. Remove the engine protection shield. Refer to Engine Protection Shield Replacement ().
4. Remove the shock module. Refer to Shock Absorber and Spring Assembly Replacement (Shock Absorber and Spring Assembly Replacement).

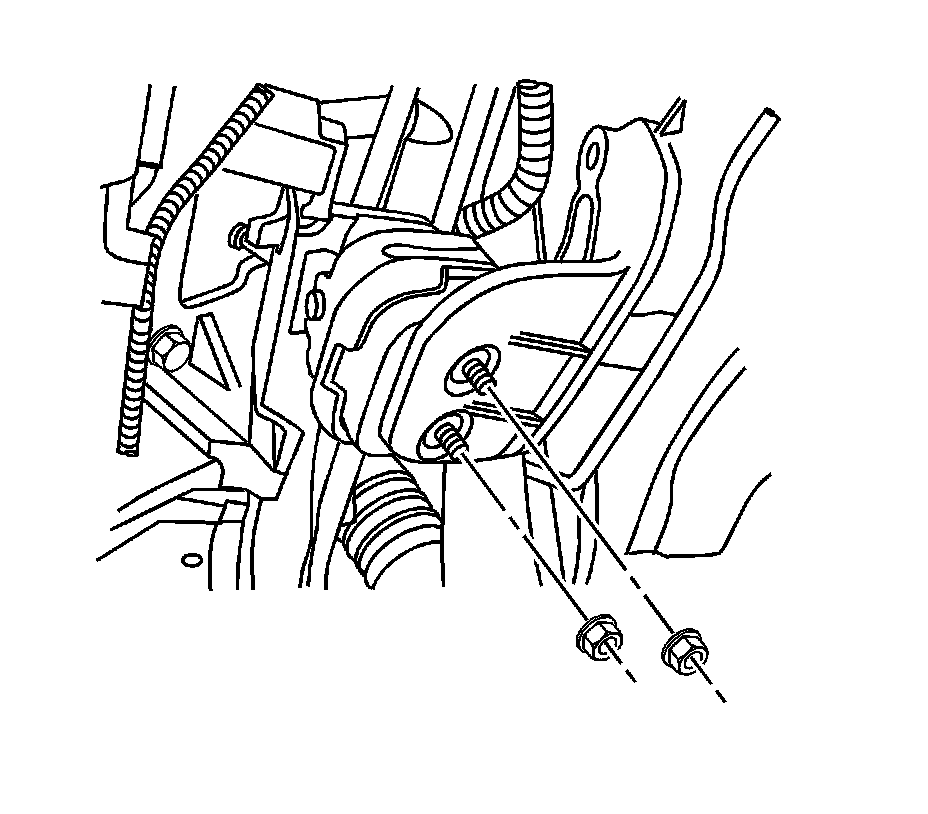

5. Remove the lower engine mount retaining nuts from the engine mount frame bracket.




6. Remove the 3 mounting bolts that secure the upper engine mount bracket to the engine block bracket.

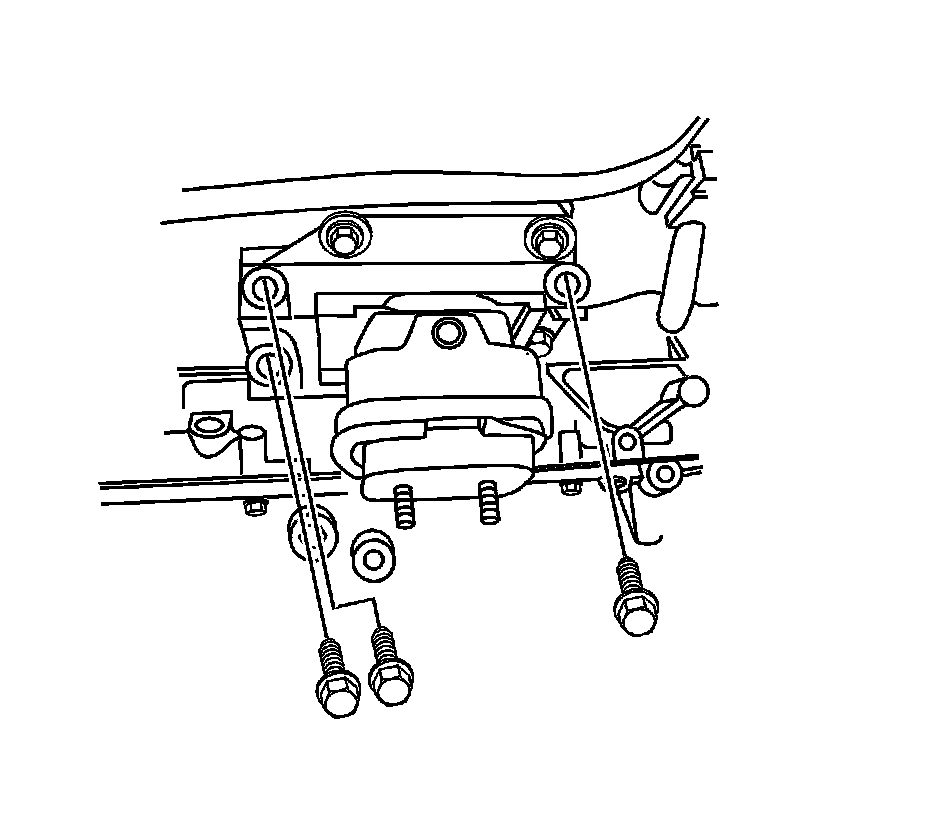

7. Remove the 3 frame engine mount bracket retaining bolts.




8. Install a pole jack underneath the oil pan.
9. Insert a block of wood between the oil pan and the pole jack.

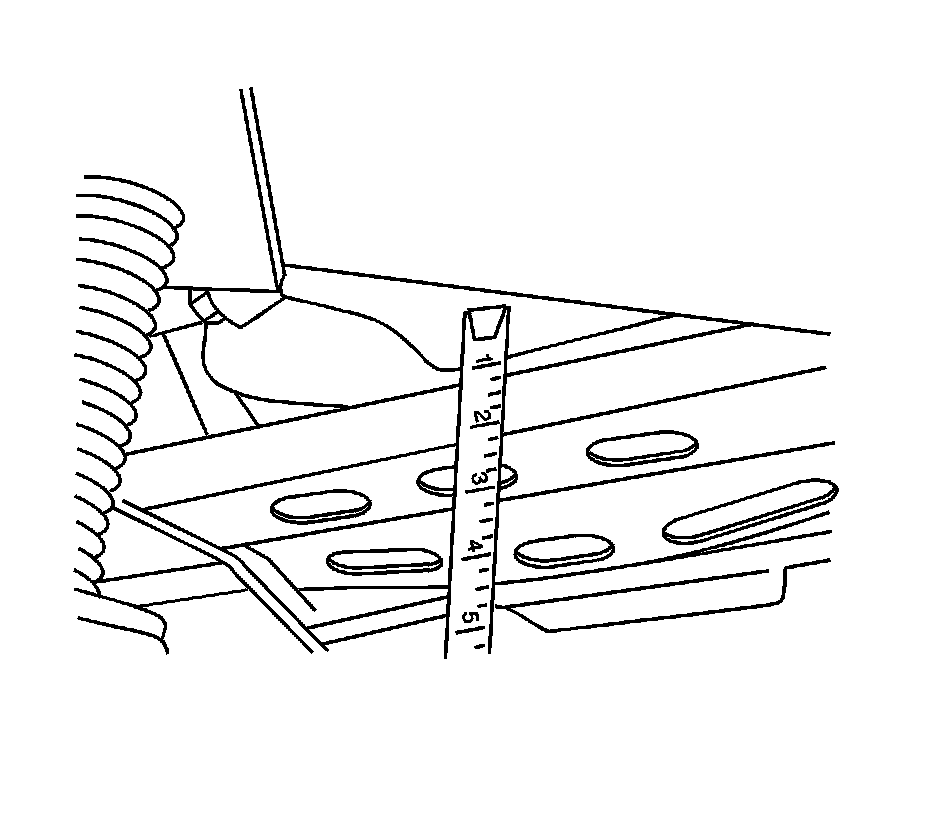

10. Raise the engine 21/4 inches measuring from the bottom of the oil pan to the front edge of the transmission support crossmember.




11. Remove the engine mount frame bracket from the frame.

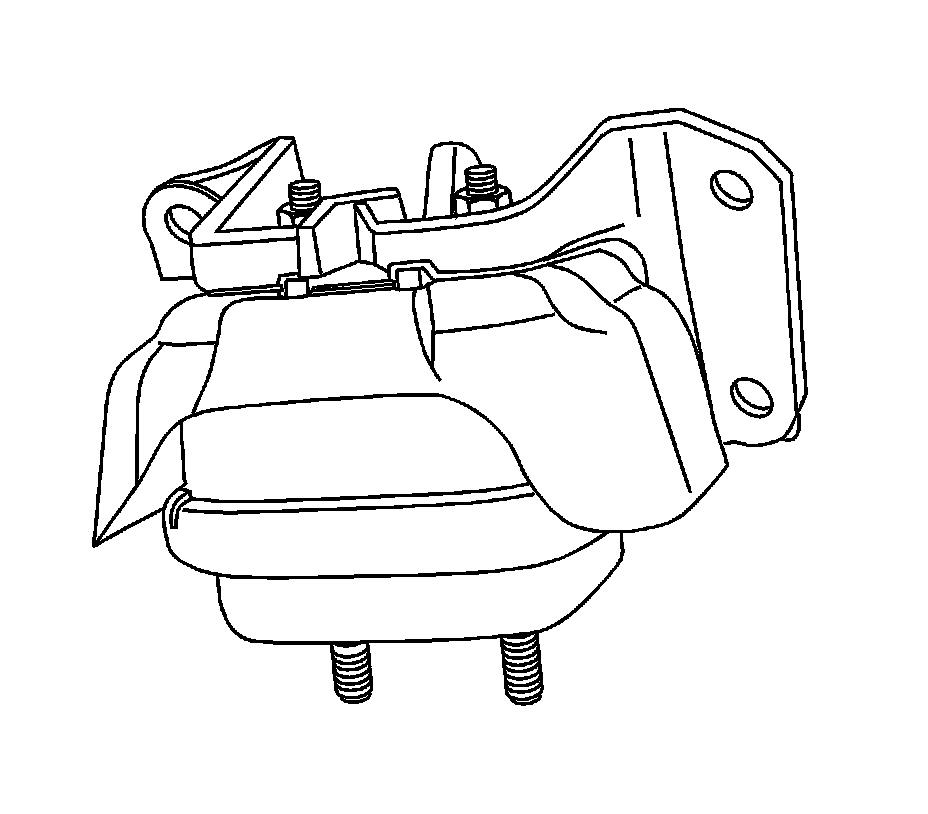

12. Remove the engine mount with the upper engine mount bracket as an assembly.
13. Separate the engine mount from the upper engine mount bracket.




14. Remove the engine mount bracket spacer if damaged.

Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the engine mount bracket spacer if necessary.

Tighten the spacer bolts to 50 Nm (37 ft. lbs.).





Important: Verify that the cut out side of the engine mount shield is positioned away from the engine.


2. Install the engine mount to the upper engine mount bracket.

Tighten the engine mount nuts to 50 Nm (37 ft. lbs.).




3. Install the engine mount to the engine.

Tighten the engine mount bolts to 50 Nm (37 ft. lbs.).




4. Install the engine mount frame bracket to the frame.
5. Install the retaining bolts to the engine mount frame bracket.
6. Install the left side engine mount frame bracket.
7. Install the retaining bolts to the left side engine mount frame bracket.

Tighten the bolts to 100 Nm (74 ft. lbs.).

8. Lower the engine, aligning the engine mount studs with the holes in the frame bracket.
9. Remove the pole jack and block of wood.
10. Tighten the engine mount nuts.

Tighten the nuts to 50 Nm (37 ft. lbs.).

11. Install the shock module. Refer to Shock Absorber and Spring Assembly Replacement (Shock Absorber and Spring Assembly Replacement).
12. Install the engine protection shield. Refer to Engine Protection Shield Replacement ().
13. Install the front tire and wheels. Refer to Tire and Wheel Removal and Installation (Service and Repair).
14. Lower the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
