Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

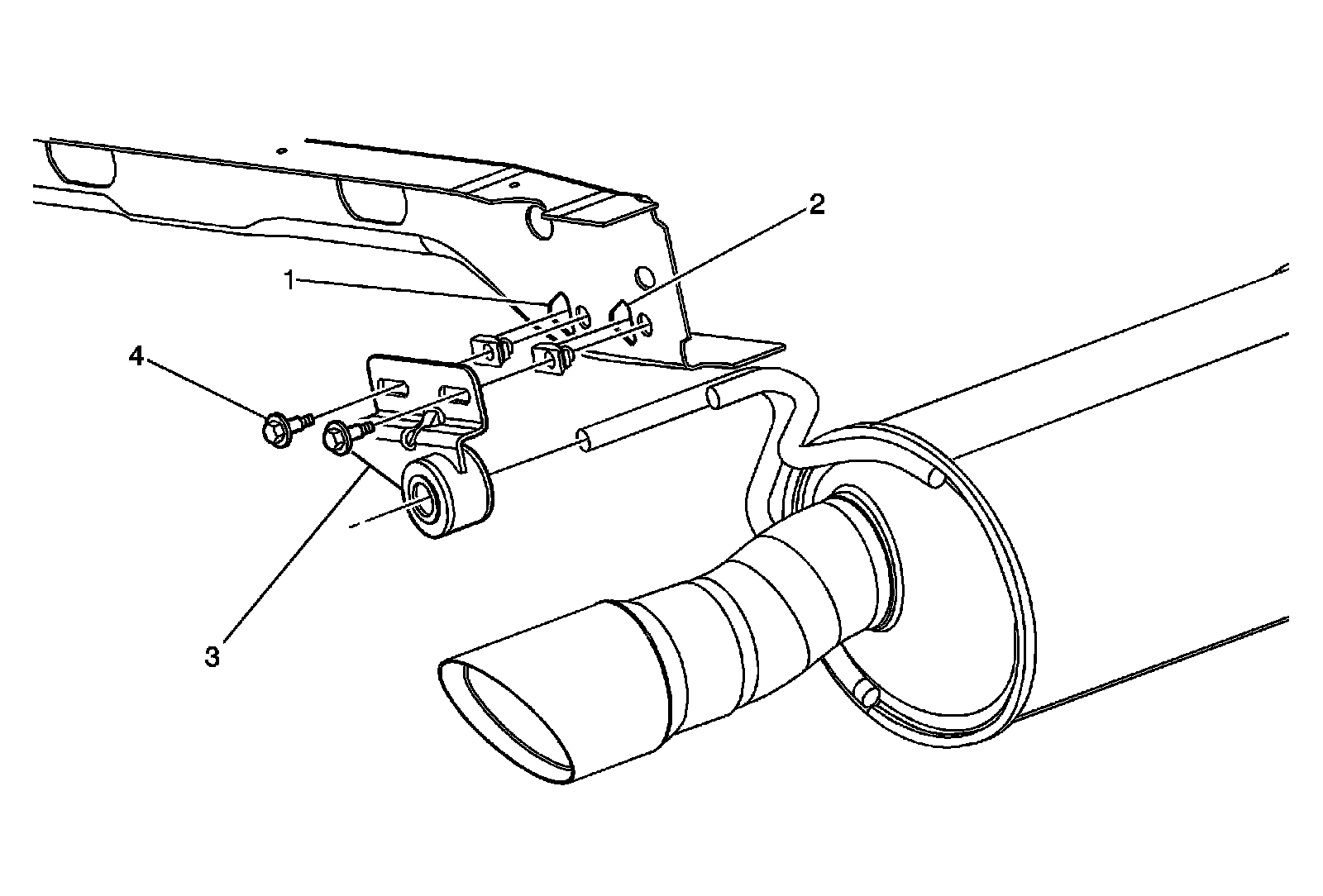

2. Remove the exhaust hanger bracket assembly bolts (4).
3. Remove the adjustable exhaust hanger bracket assembly (3) from the muffler hanger rod.
4. Remove two U-clips in the slots (1 and 2) in the spare tire crossmember.

Installation Procedure




1. Install two NEW U-clips in the slots (1 and 2) in the spare tire crossmember. Seat the clips into position.
2. Install the adjustable exhaust hanger bracket assembly (3) onto the muffler hanger rod with the two bolts (4) and hand tighten.

Notice: Refer to Fastener Notice (Fastener Notice).

3. Position the adjustable exhaust hanger bracket assembly (3) so that the exhaust tip is centered with at least 25 mm of clearance to the rear fascia opening.

Tighten the exhaust hanger bracket bolts to 22Nm [16 ft. lbs.].
