Instrument Panel Outer Air Outlet Replacement - Right Side

Instrument Panel Outer Air Outlet Replacement - Right Side

Removal Procedure




1. Remove the right instrument panel (I/P) access cover.

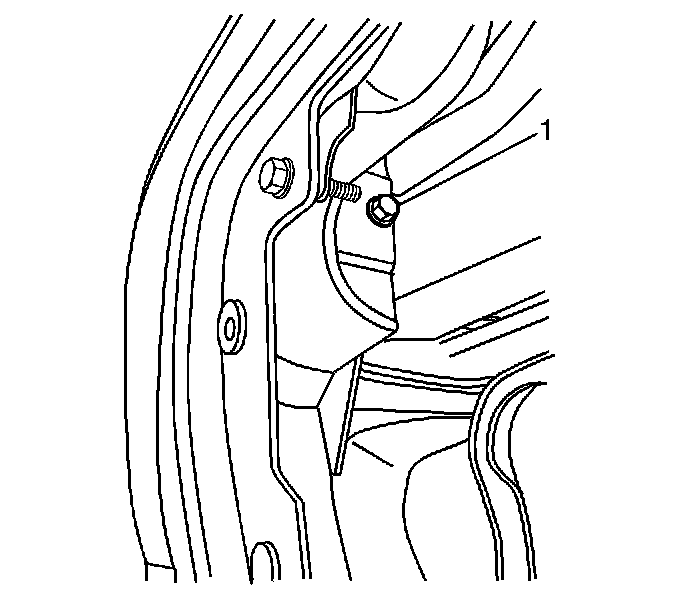

2. Remove the screw (1) retaining the air outlet assembly to the I/P.

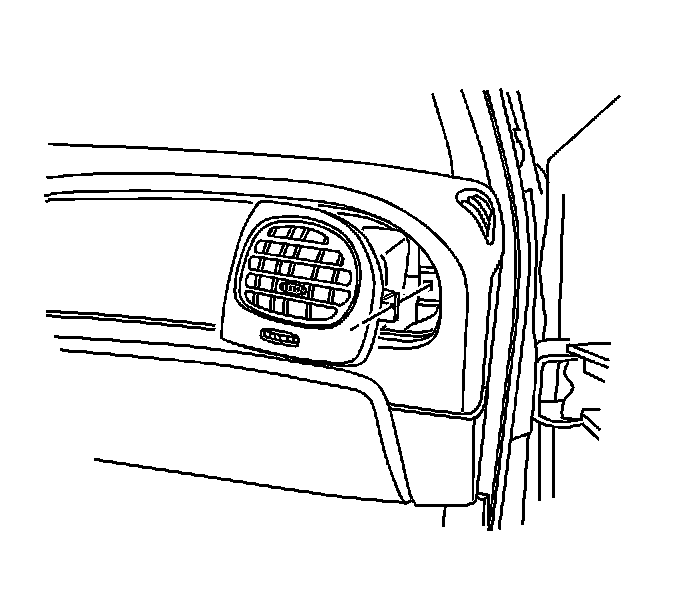

3. Grasp and pull the outlet assembly rearward from the I/P.
4. Remove the outlet assembly from the vehicle.

Installation Procedure




1. Install the outlet assembly to the I/P.





Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the retaining screw.

Tighten the screw to 2.5 Nm (22 in. lbs.).




3. Install the I/P access cover.
