Engine Controls Schematics 3
Engine Controls Schematics 3
Engine Controls Schematics

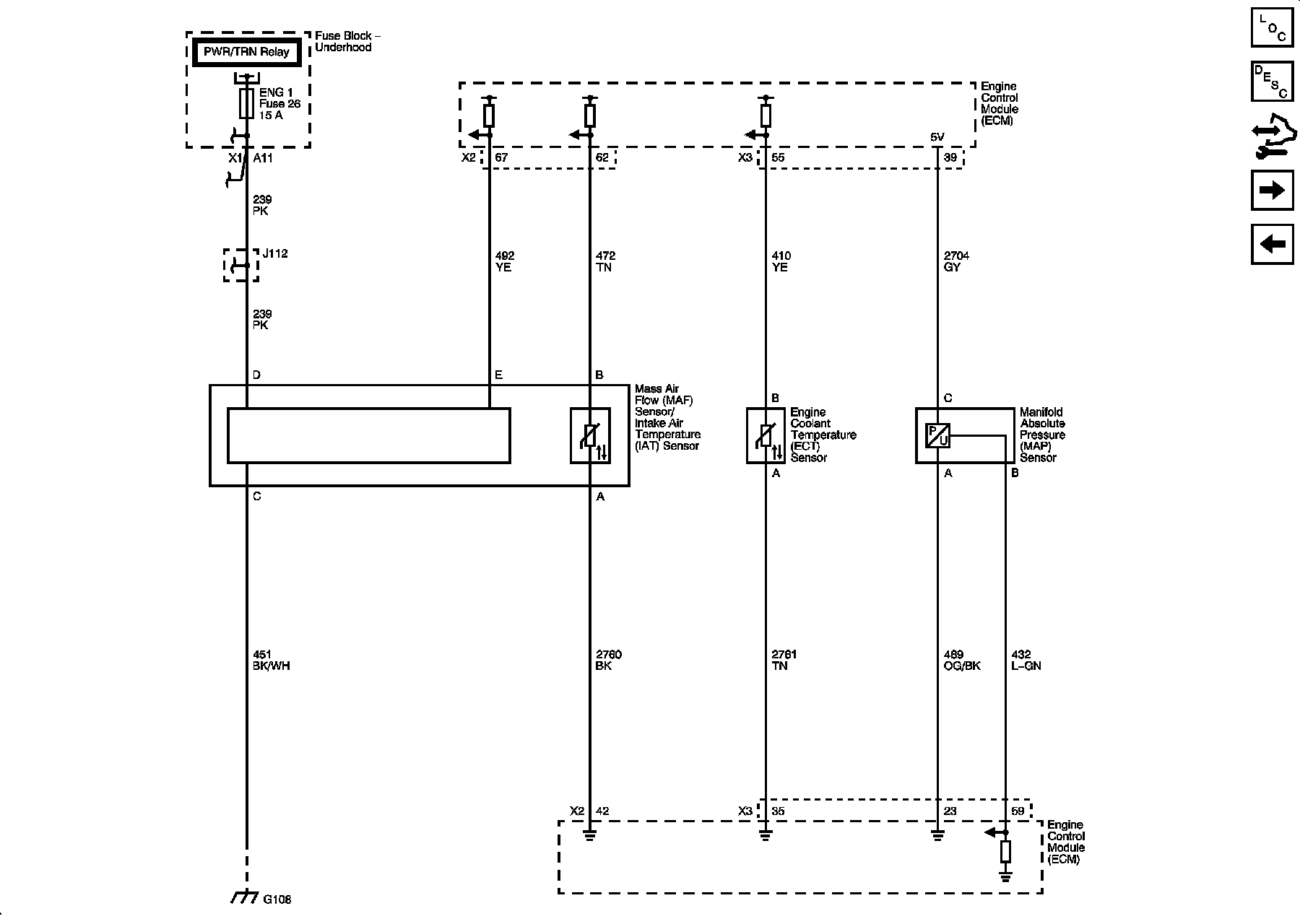

Engine Data Sensors - MAF, Pressure, and Temperature
