Engine Controls Schematics 9



Engine Controls Schematics

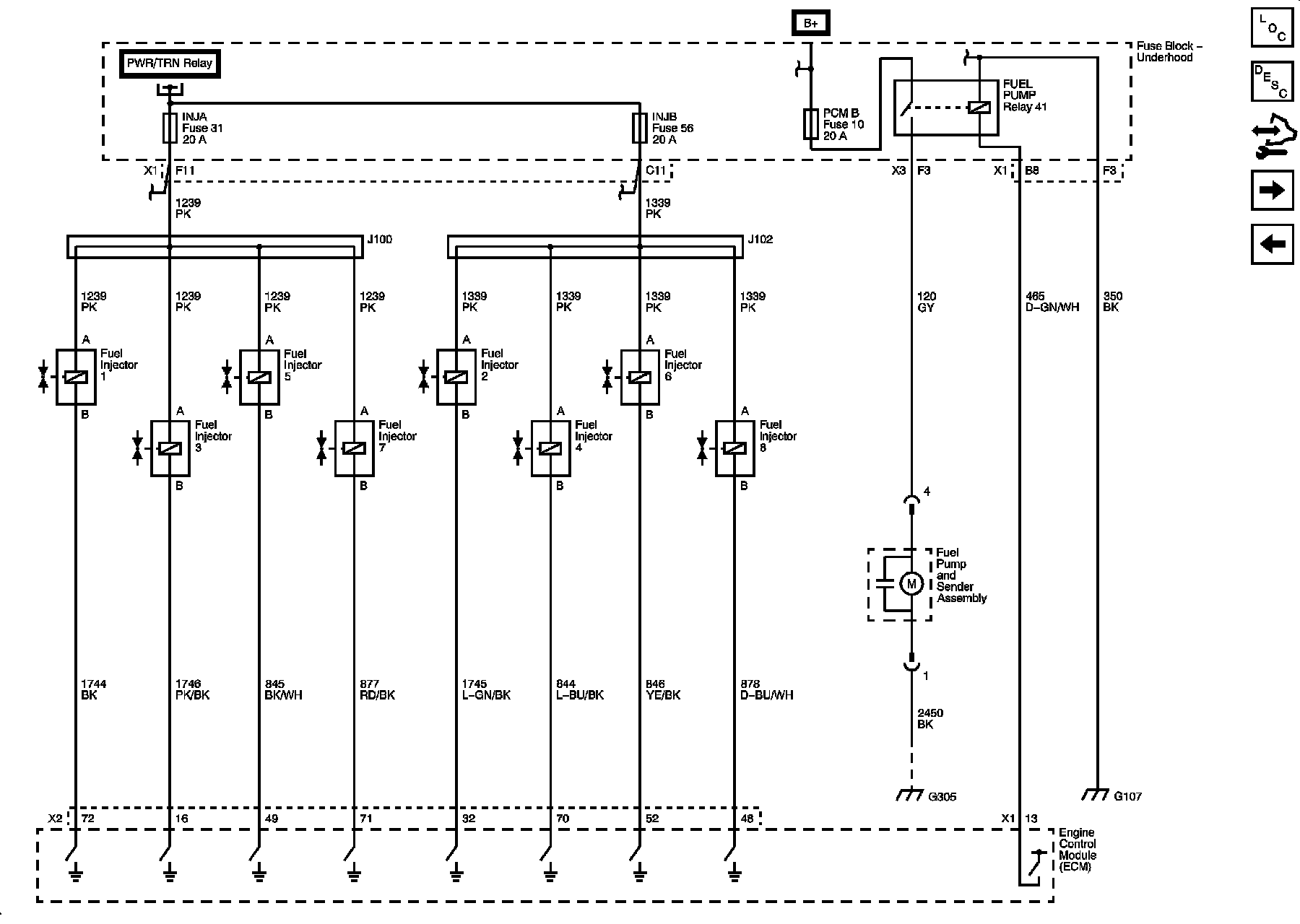

Fuel Controls - Fuel Pump Controls and Fuel Injectors
