Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

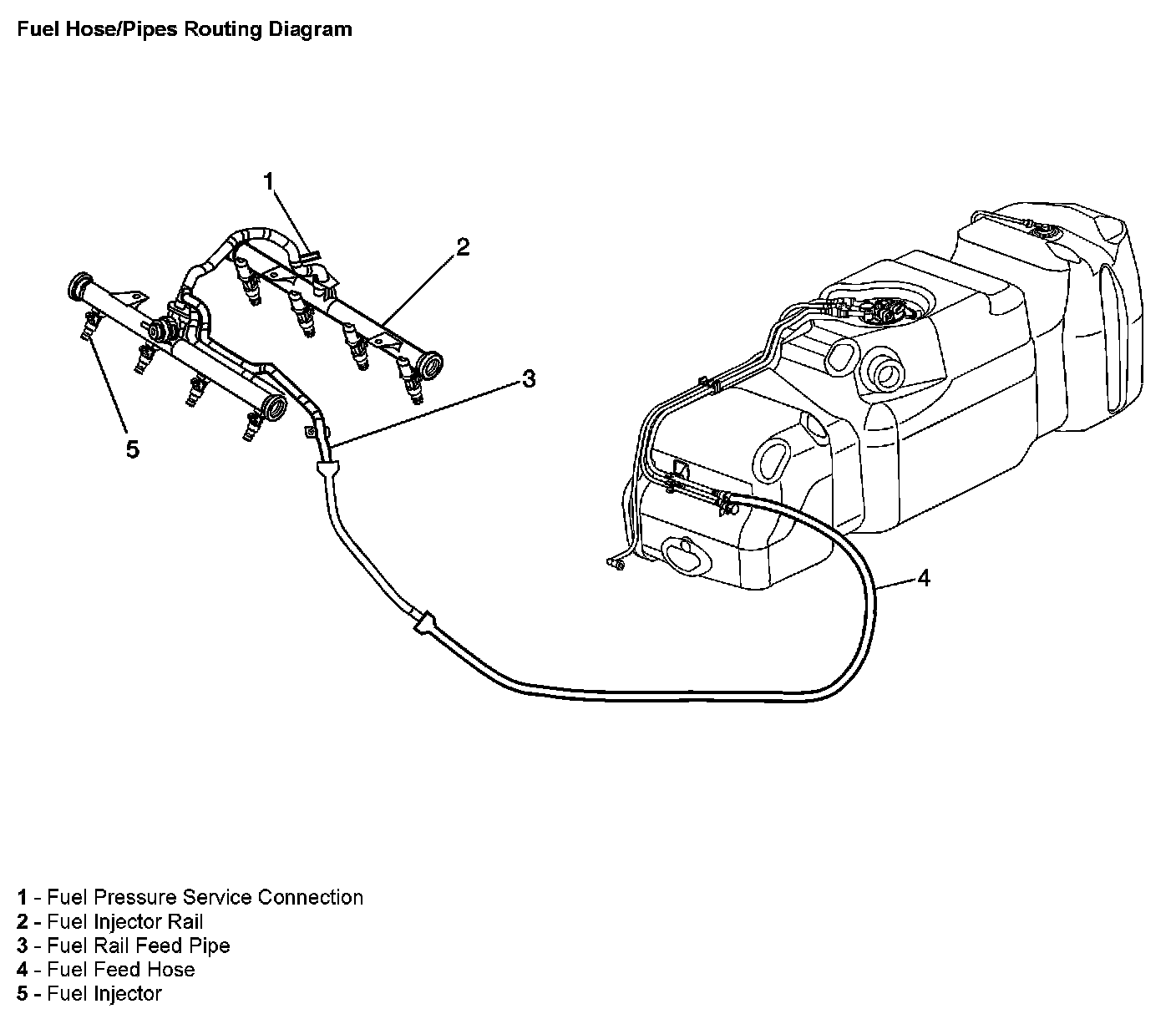

Fuel Hose/Pipes Routing Diagram:
