Alternator: Diagrams



Engine Electrical Connector End Views

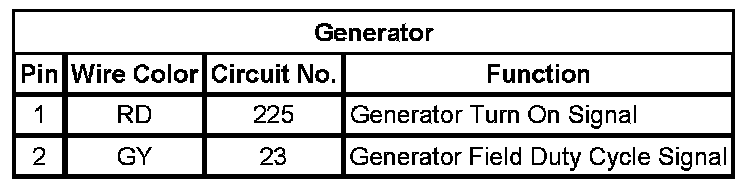

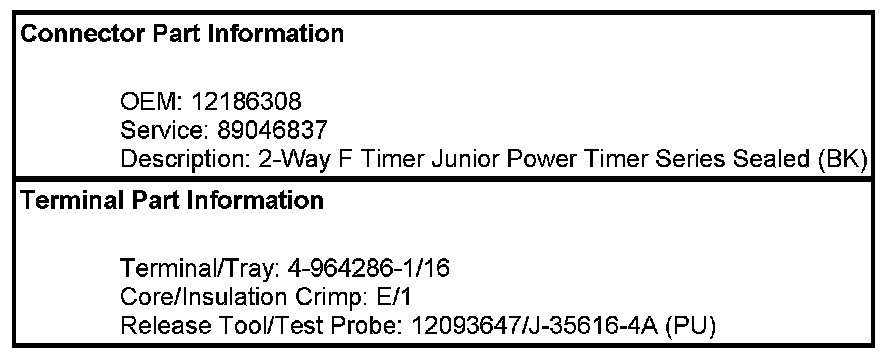

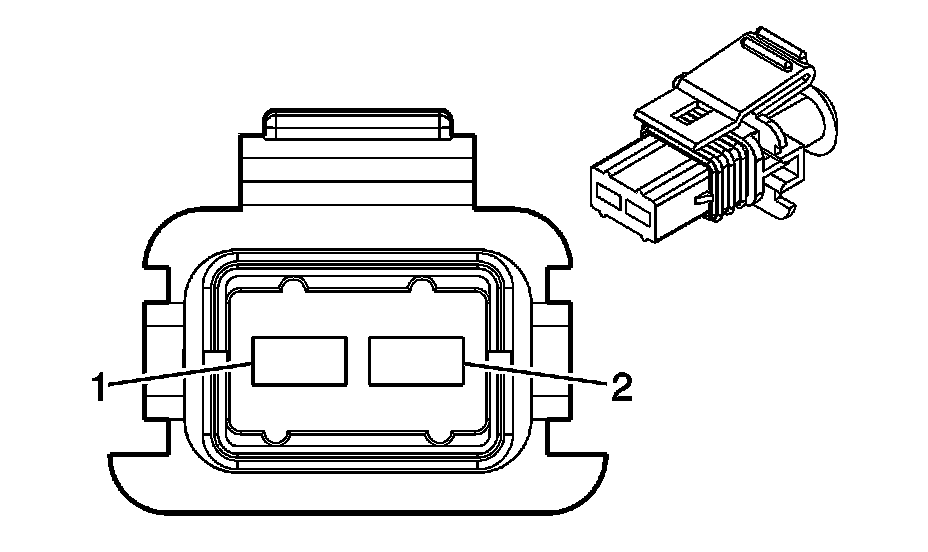

Generator














Regulated Voltage Control Module
