Air Bag Systems
>>
Air Bag
>>

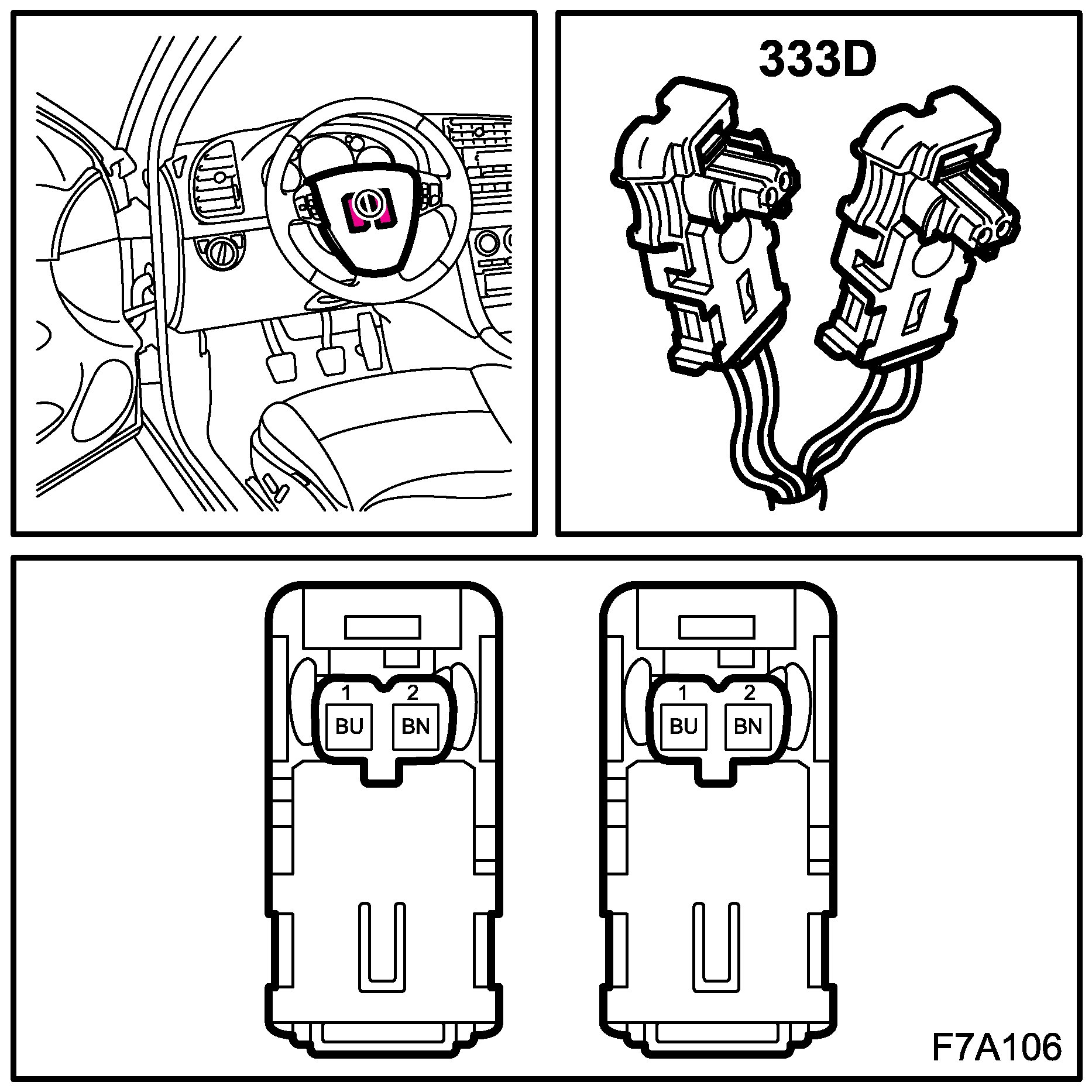

Airbag, Driver (333D)
Airbag, Driver (333D)
Airbag, Driver (333D)
Location:
in the steering wheel
Airbag, Driver (333D):
