Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2010
>>
9-3 XWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Speaker, Rear, RH (266RR)
>>
4D
4D

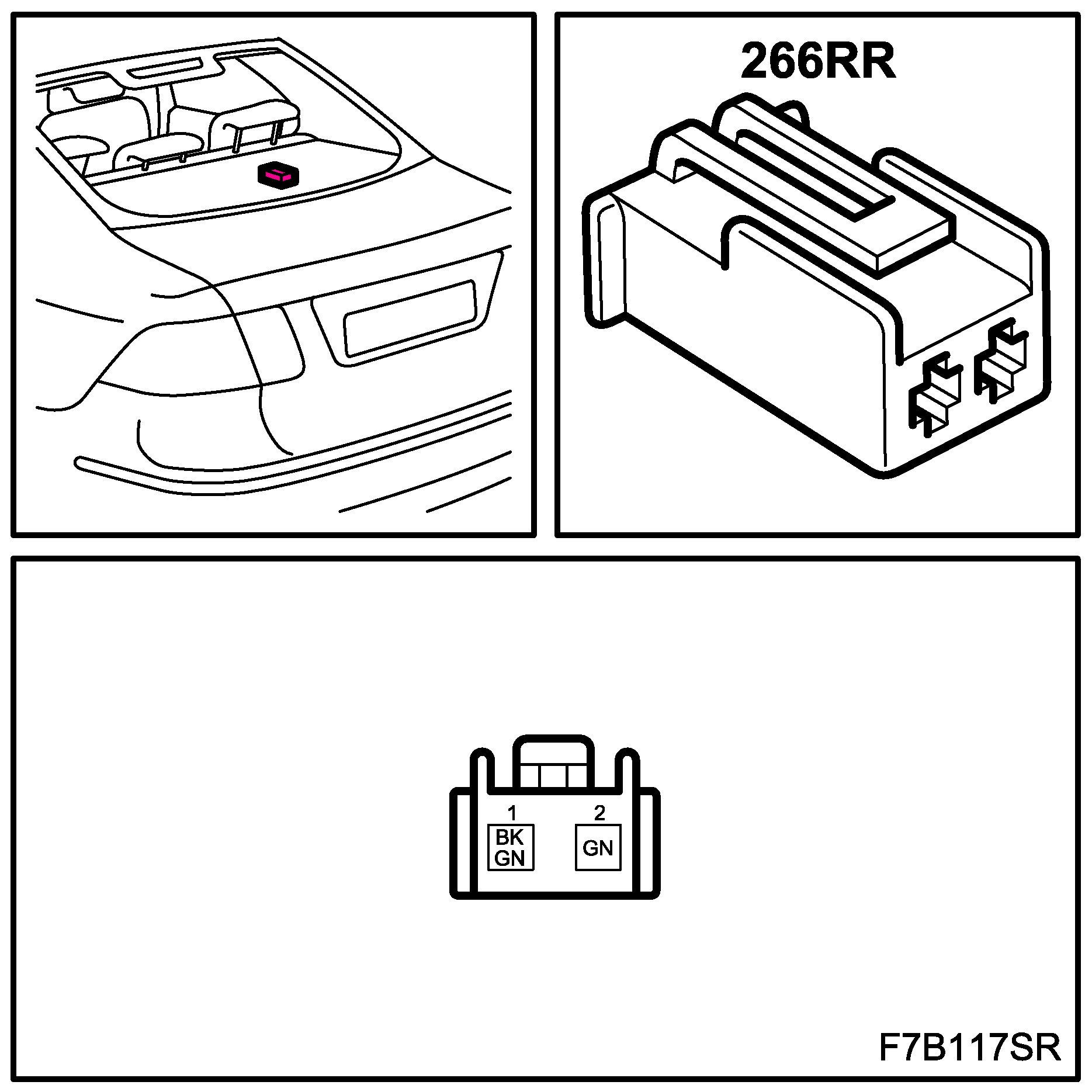

Speaker, Rear, RH (266RR)
Location:
to the right in the parcel shelf
4D
Speaker, Rear, RH (266RR):
