Speaker, Rear, RH (266RR)
>>
CV
CV

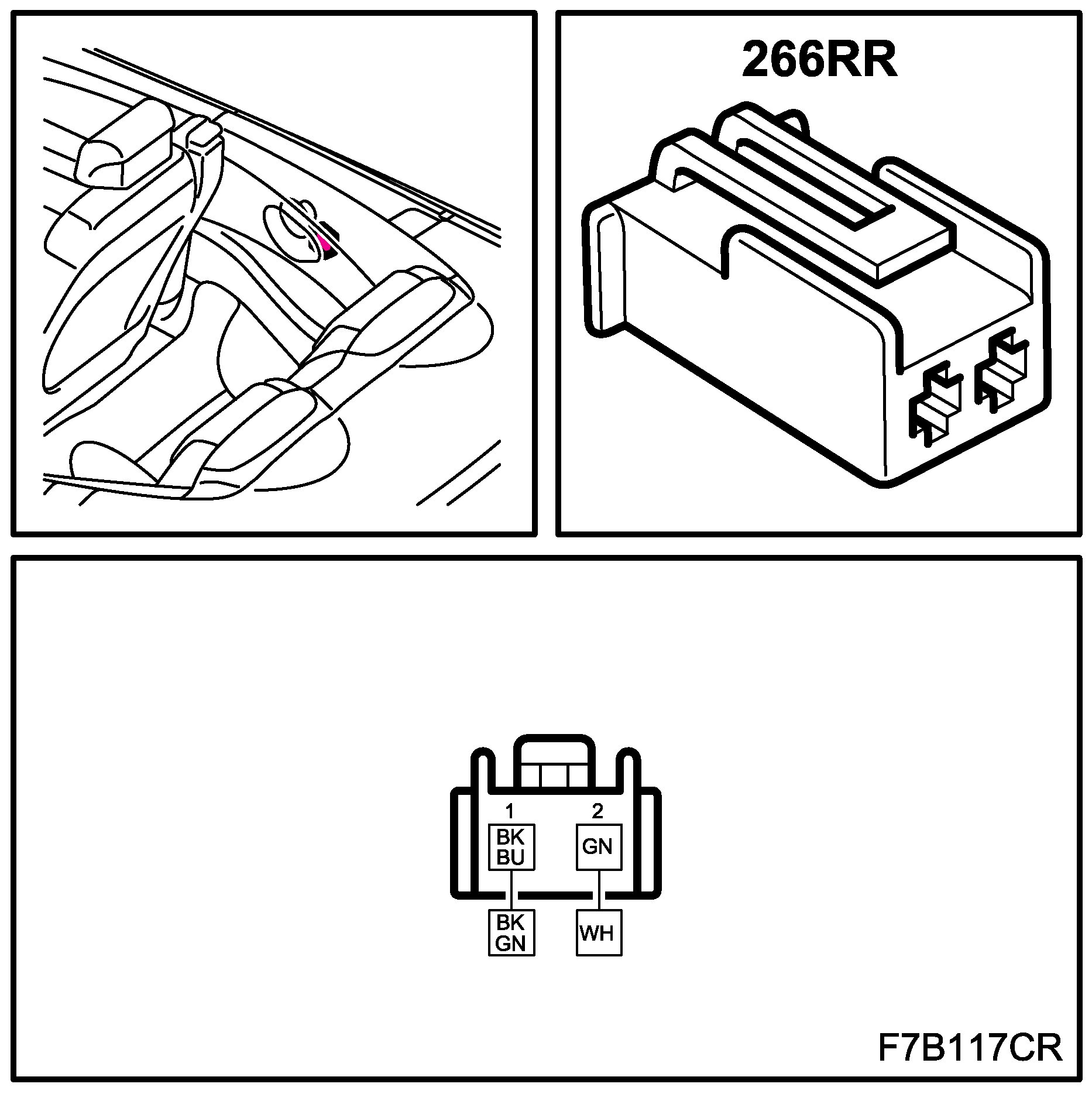

Speaker, Rear, RH (266RR)
Location:
to the right in the parcel shelf
CV
Speaker, Rear, RH (266RR):
