Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2010
>>
9-3 XWD (9440) L4-2.0L Turbo (B207R)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Speaker, Woofer, Rear , RH (266RRW)
>>
CV
CV

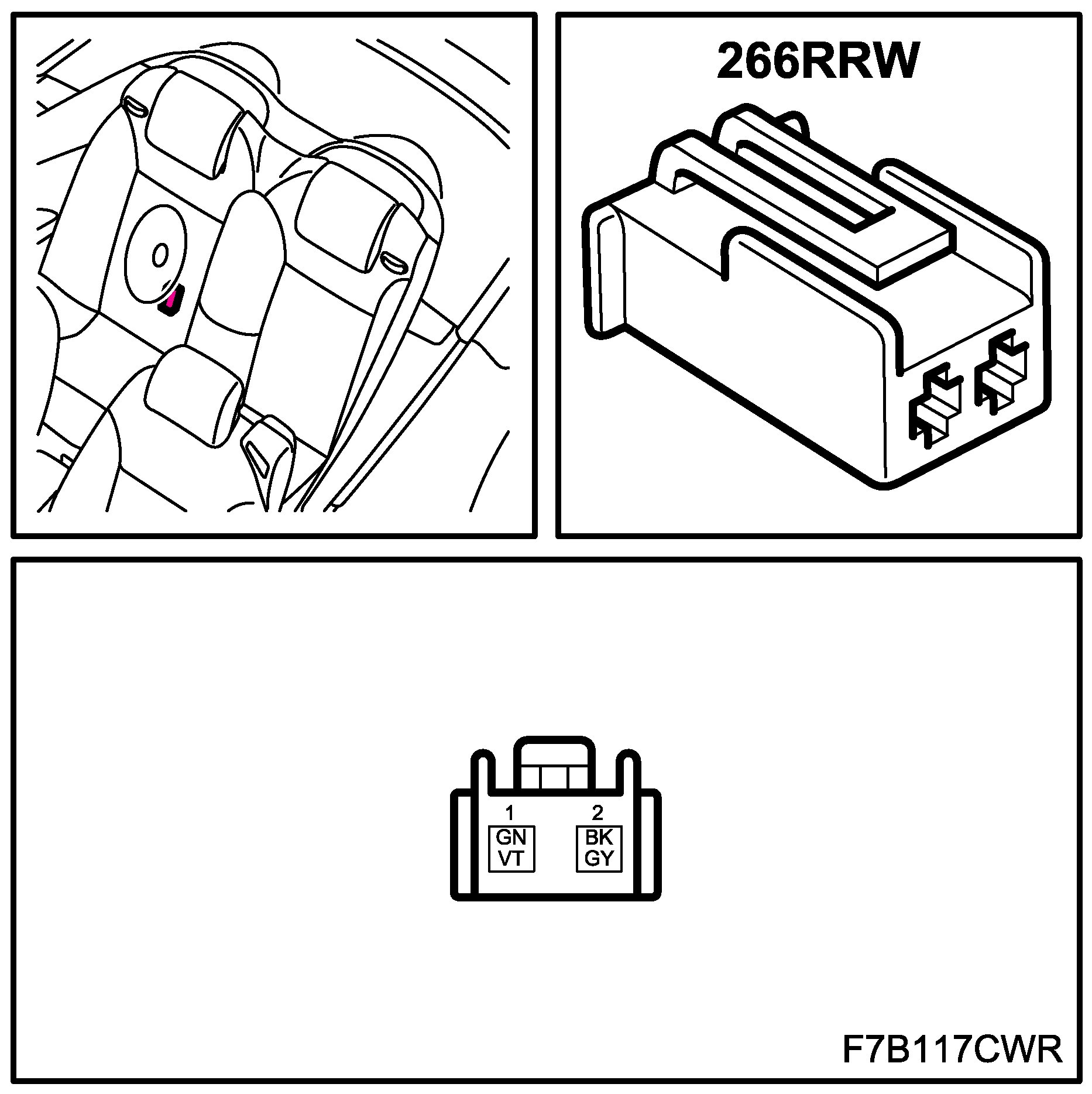

Speaker, Woofer, Rear , RH (266RRW)
Location:
to the right in the parcel shelf
CV
Speaker, Woofer, Rear, RH (266RRW):
