Antilock Brakes / Traction Control Systems

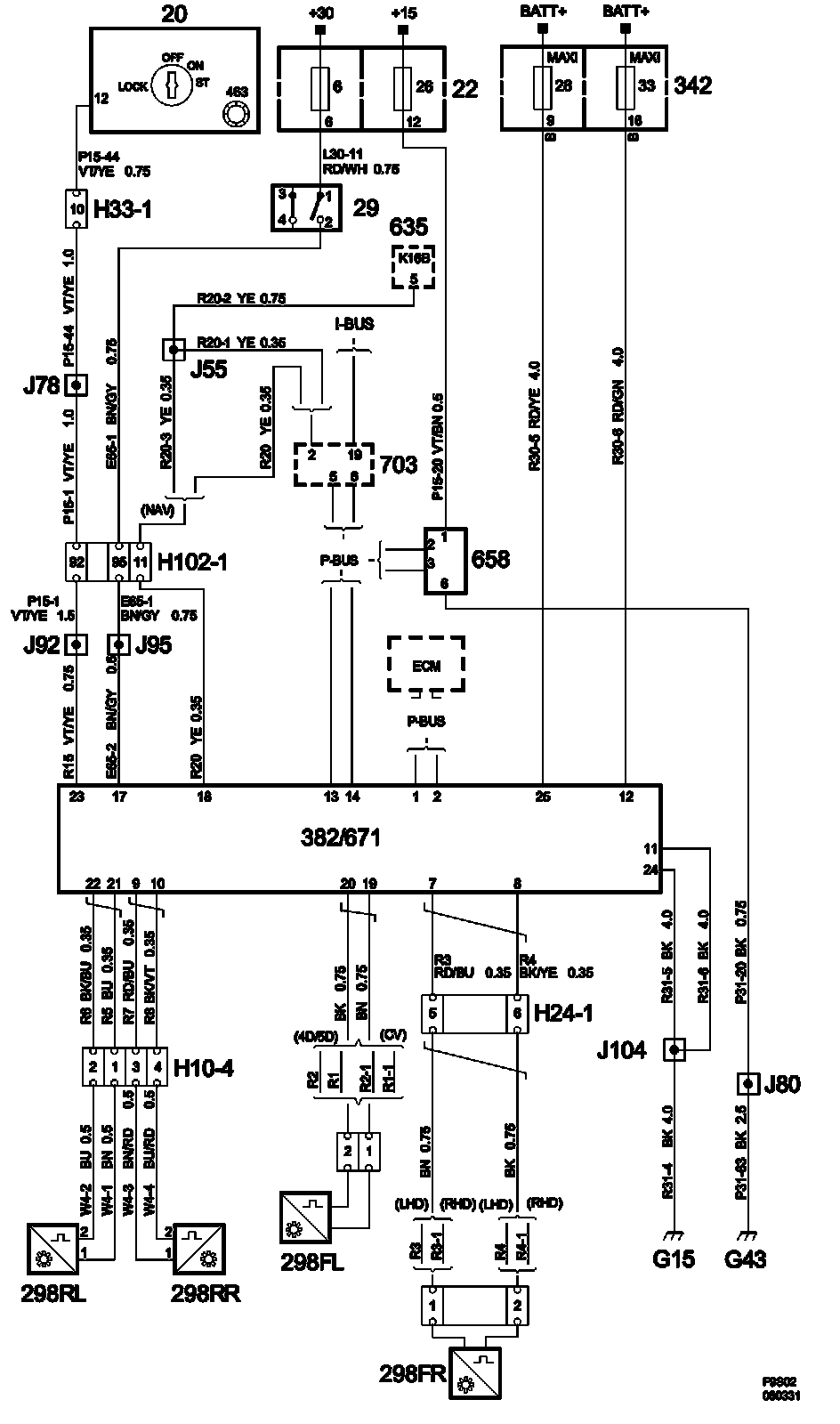

Anti-lock Brakes With TCS/ESP:

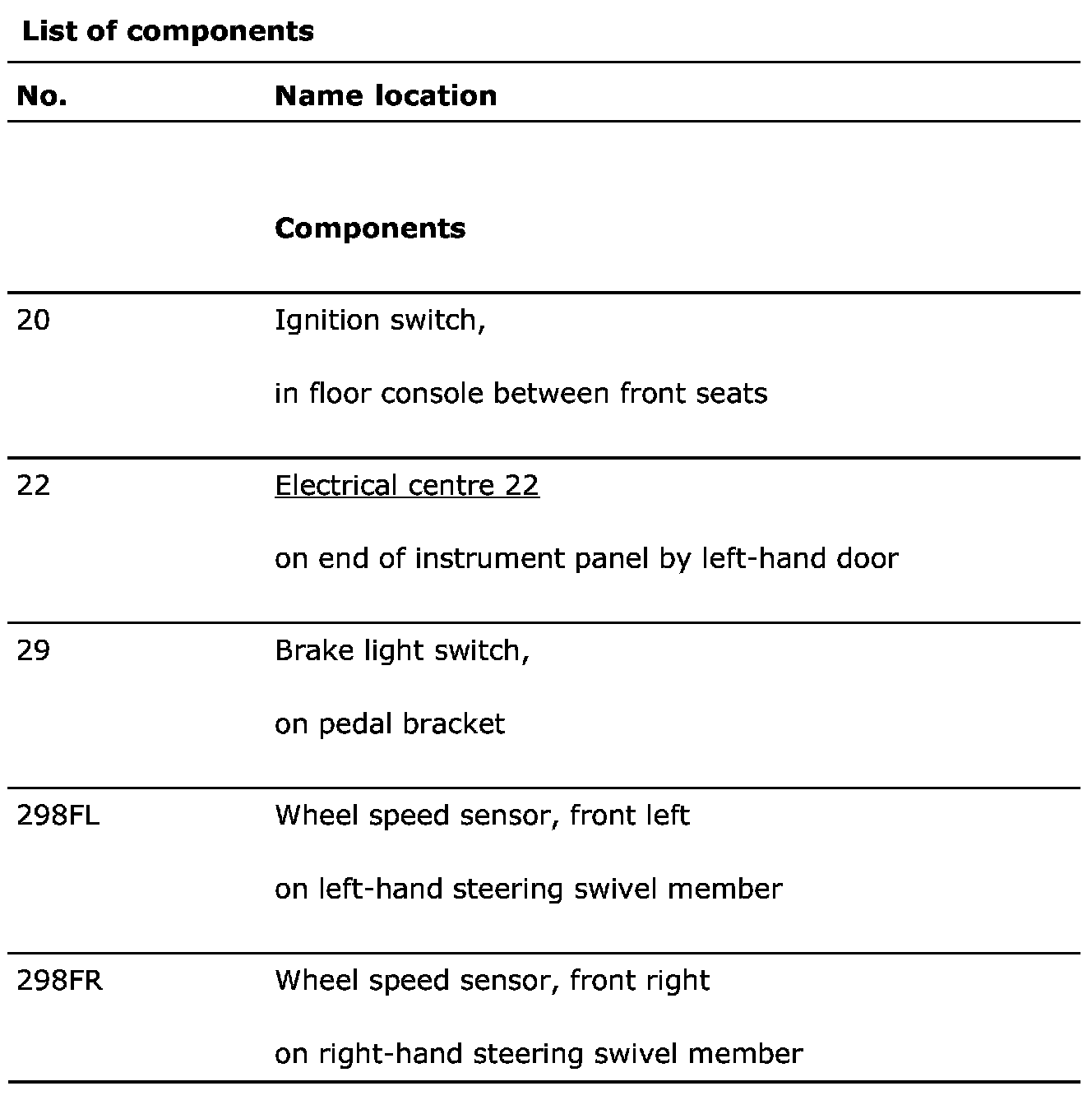

List Of Components (Part 1):




List Of Components (Part 2):




List Of Components (Part 3):




List Of Components (Part 4):
