Heated Door Mirror, FL

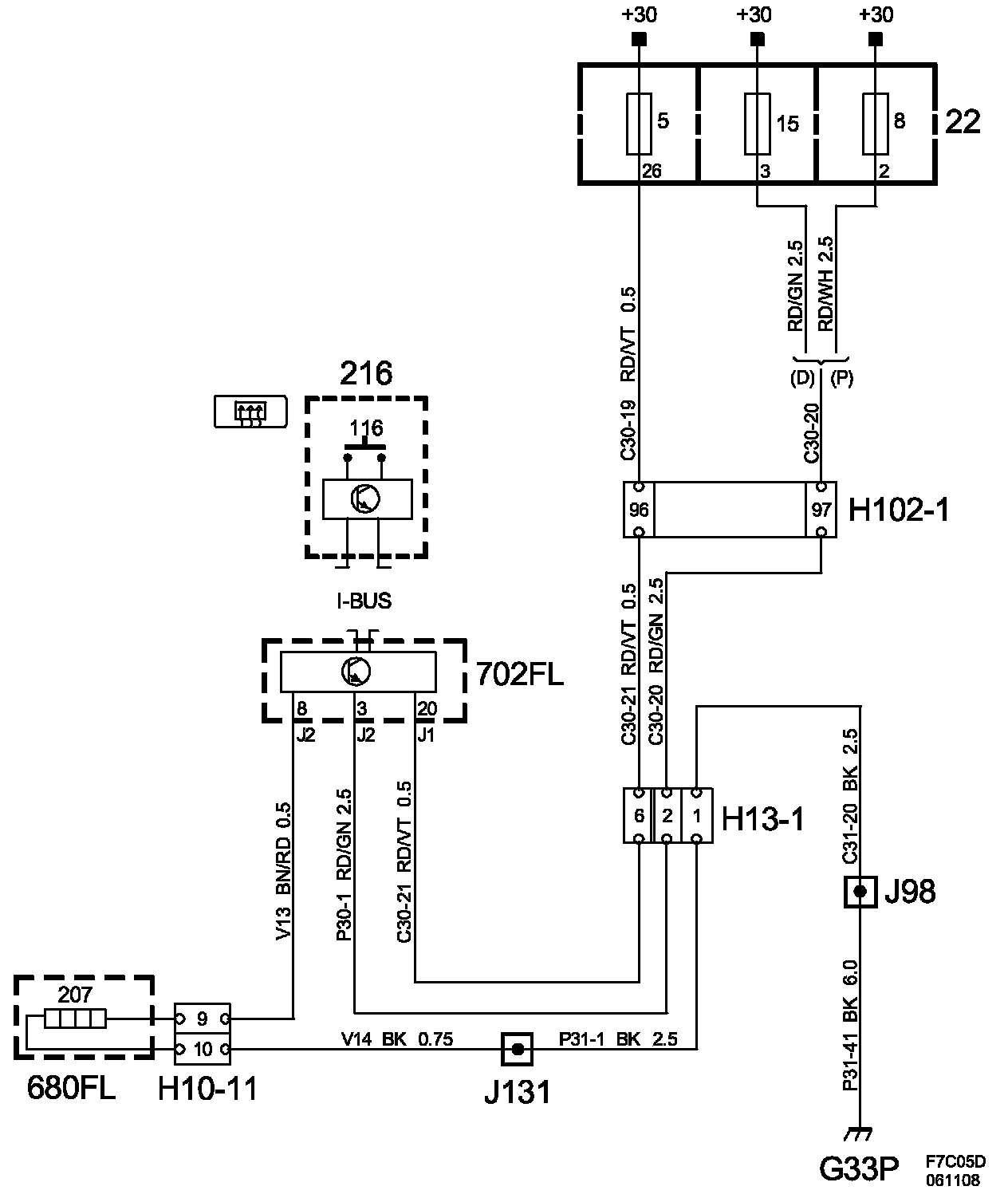

Heated Door Mirror, FL:

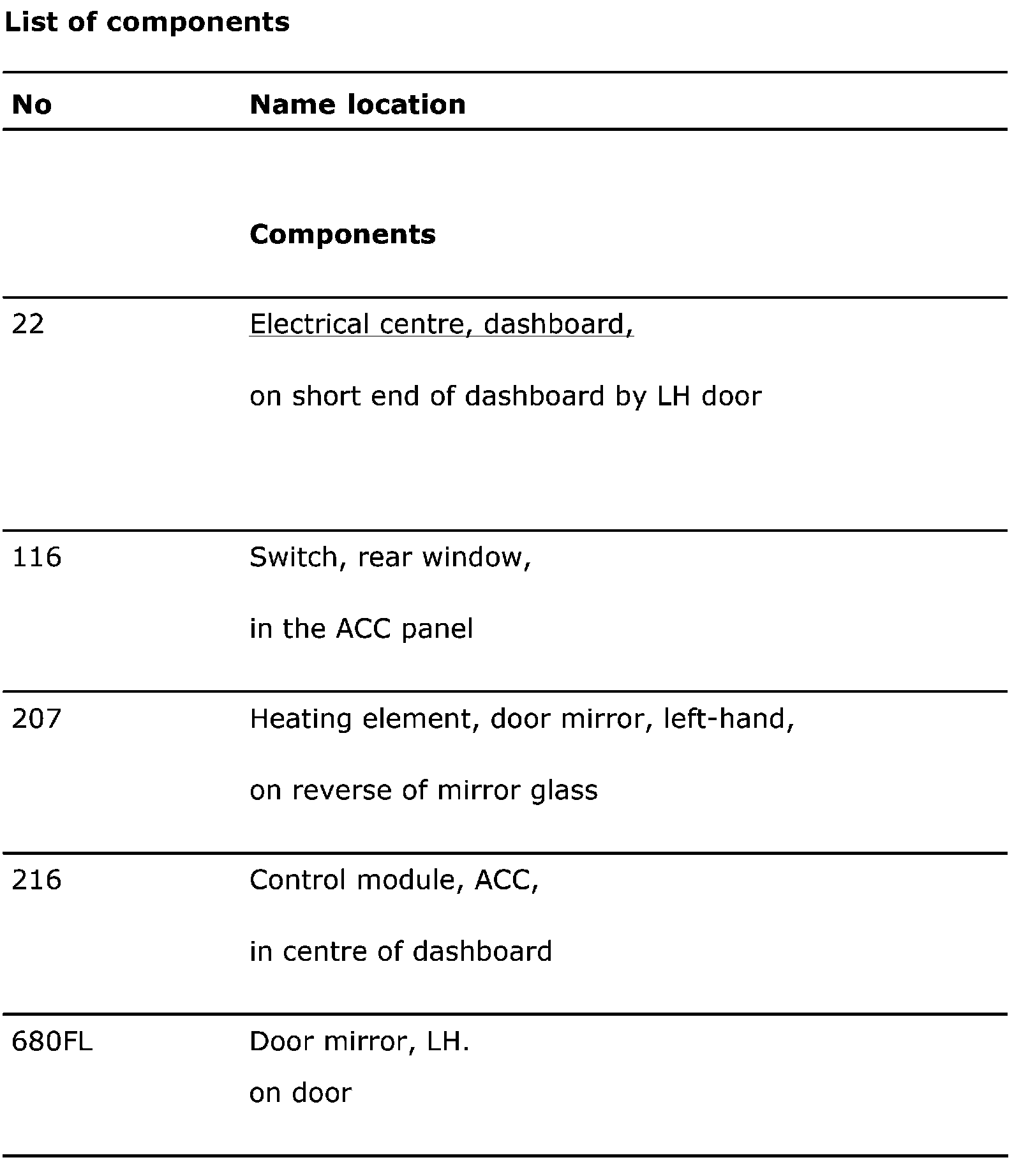

List Of Components (Part 1):

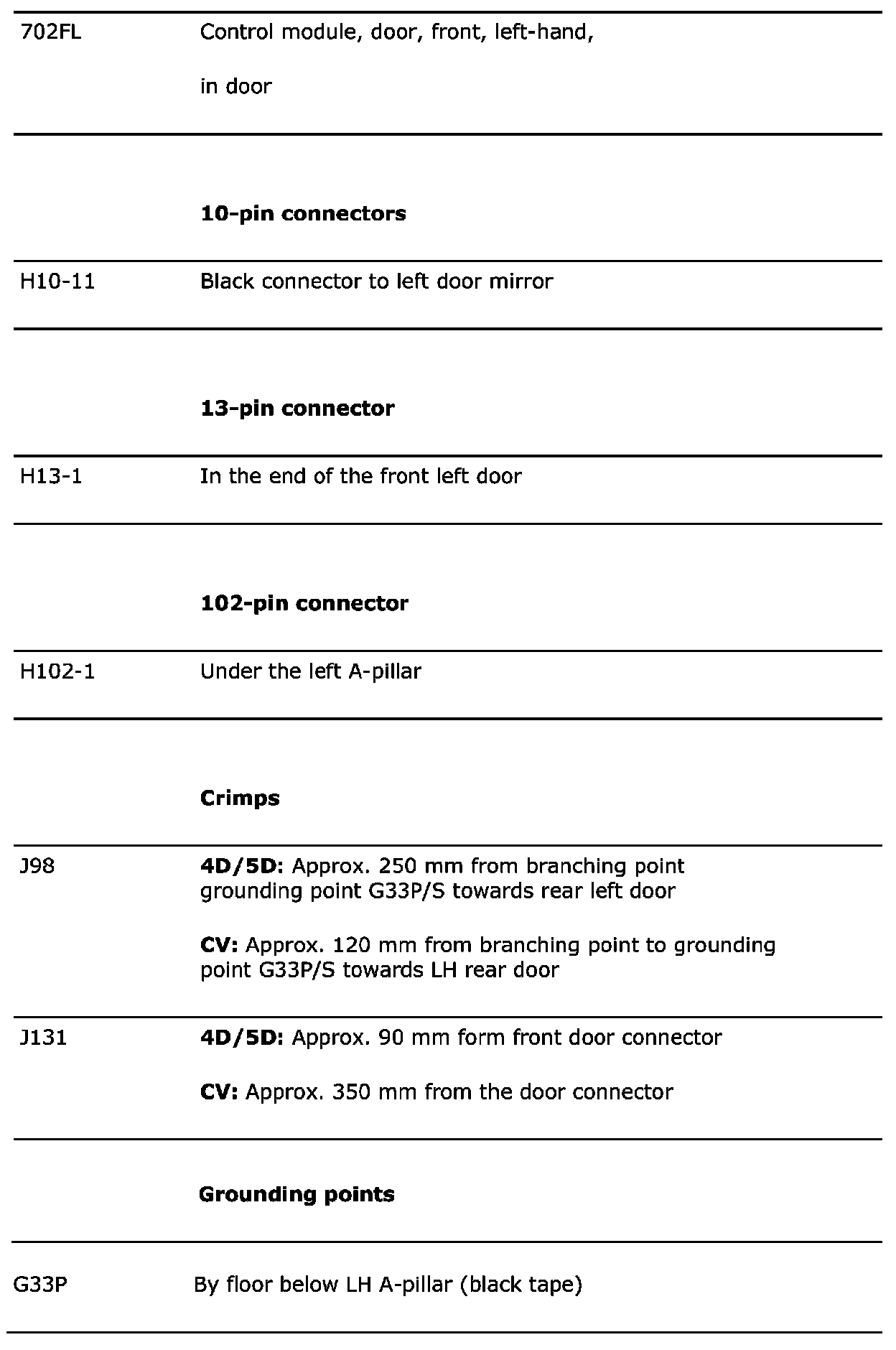

List Of Components (Part 2):
