Antenna Mast: Service and Repair

REMOVAL




1. Disconnect antenna lead from antenna base mating socket located by the passenger's feet area.
2. Use a wrench to loosen antenna mast.
3. Remove antenna mast.

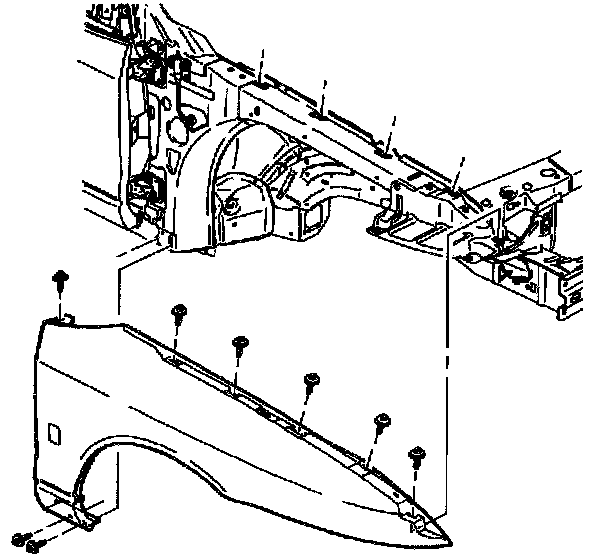

4. Remove right fender.




5. Remove fasteners from antenna bracket assembly.
6. Remove antenna bracket assembly from vehicle.

INSTALLATION

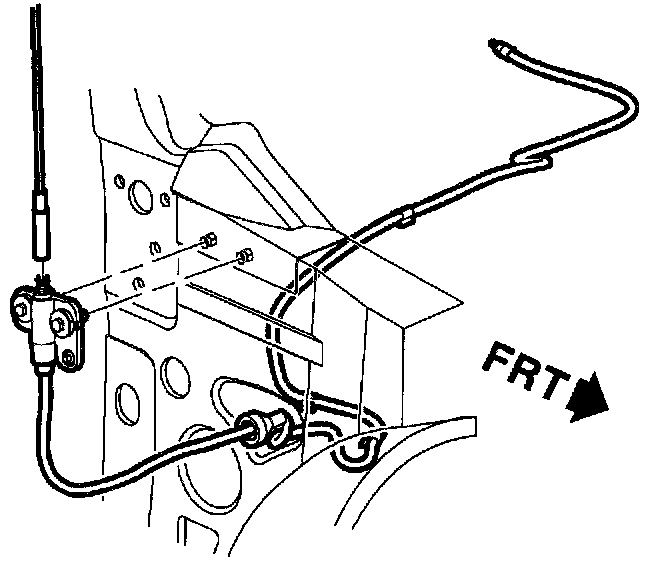

1. Position antenna bracket assembly to right vehicle.
2. Route antenna connector through spaceframe opening and install coax grommet to body opening.
3. Route antenna base/cable to antenna lead and connect antenna lead to antenna base mating socket.
4. Install fasteners to secure antenna bracket assembly to fender.

Torque: 10 N.m (89 in-lbs)

5. Install and tighten antenna mast to antenna base.
6. Torque the antenna mast down with a wrench.

Torque: 10 N.m (89 in-lbs)

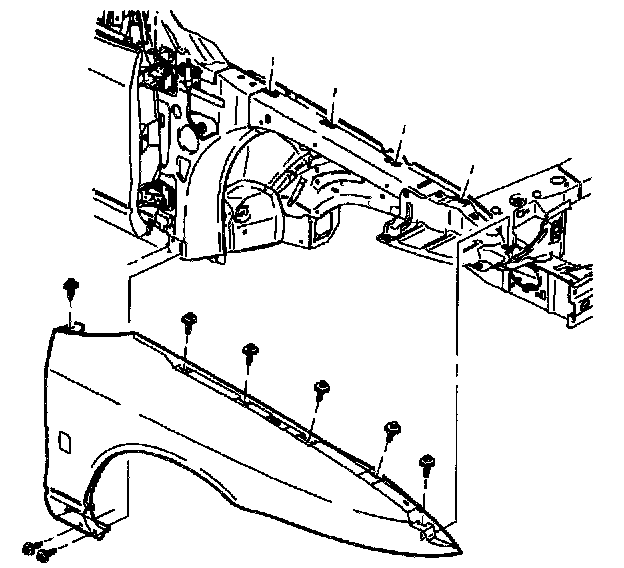

7. Install right fender.
