Door Speakers

REMOVAL
1. Remove door panel.
2. Remove speaker fasteners and pull speaker away from door assembly.
3. Disconnect speaker wire harness from speaker.
4. Remove speaker from vehicle.

INSTALLATION
1. Connect speaker wire harness to speaker.

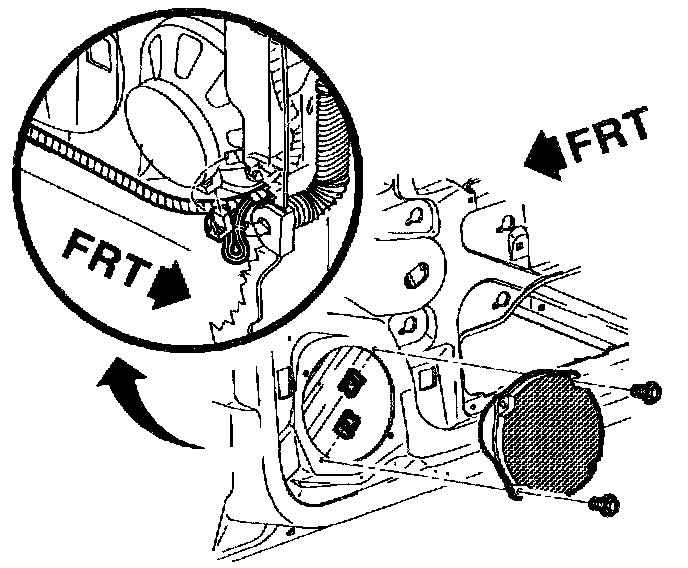

2. Position speaker in door assembly with connector at bottom speaker and install fasteners.

Torque: 2.5 N.m (22 in-lbs)

3. Install door panel.
