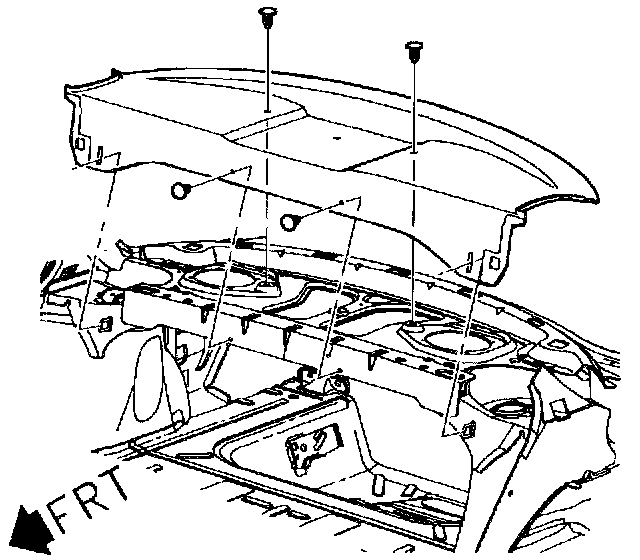

Rear Speakers

REMOVAL




1. Remove rear window trim finish panel.
2. Remove speaker fasteners and pull speaker away from panel assembly.
3. Disconnect speaker wire harness from speaker.
4. Remove speaker from vehicle.

INSTALLATION




1. Connect speaker wire harness to speaker.
2. Position speaker in panel assembly and install fasteners.
3. Install rear window trim finish panel.
(1) Main Body Wiring Harness Speaker Leads
