Removal and Replacement

REMOVAL




1. Remove glove compartment door cover.

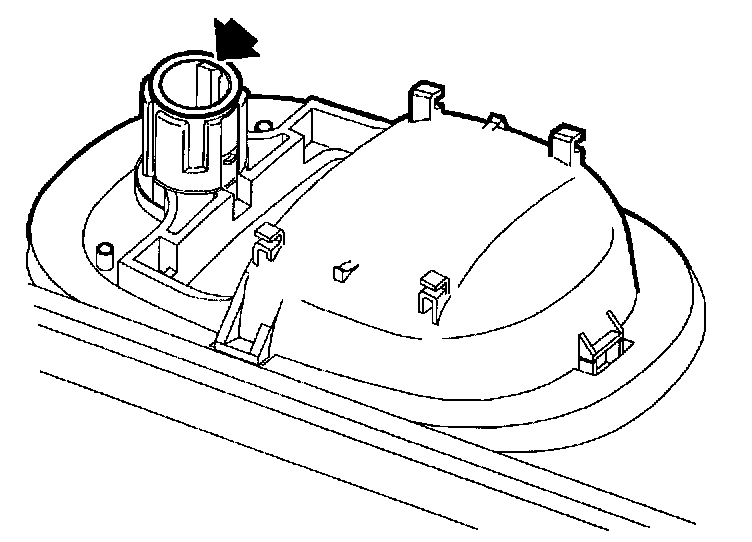

2. Insert key into glove compartment lock cylinder and rotate cylinder clockwise 90 degrees. Cylinder will stop and the retainer tumbler (first tumbler) will be visible.

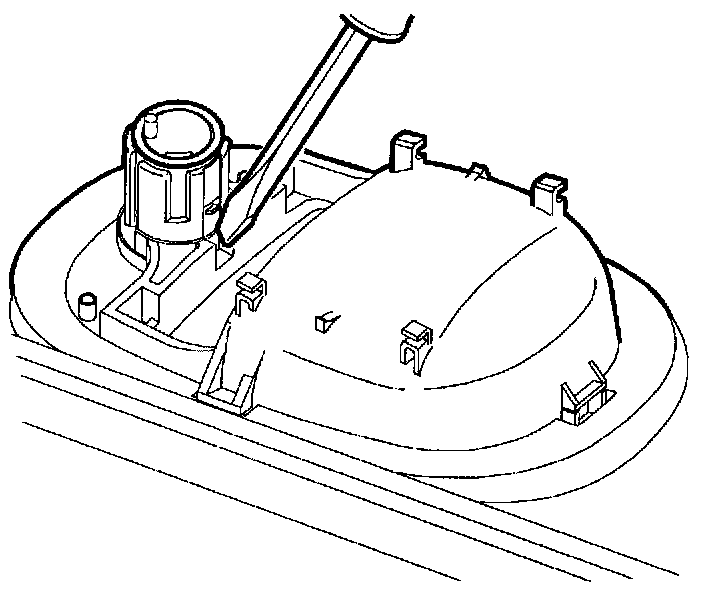

3. Depress the retainer tumbler with a thin bladed screwdriver.

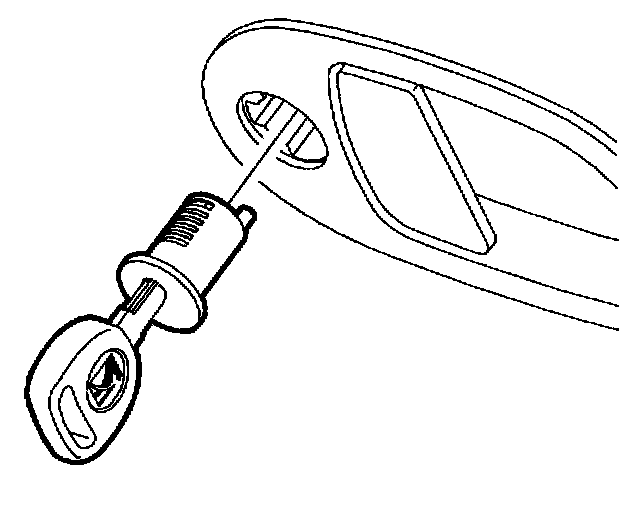

4. Rotate lock cylinder an additional 90 degrees and remove lock cylinder.

INSTALLATION

IMPORTANT:
^ If this is the initial installation of the glove compartment door lock, the factory installed cylinder plug must be removed by depressing the locking tab and pushing the plug out of the door.
^ When key is inserted into properly coded lock cylinder, all tumblers except the retainer tumbler will be flush with the lock cylinder.




1. Insert key into lock cylinder.

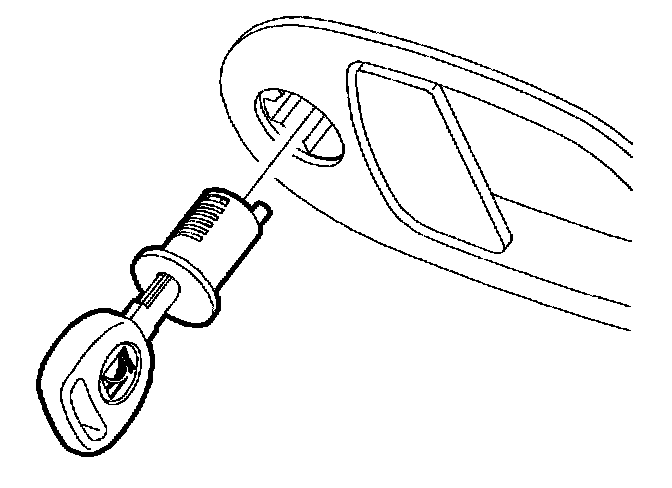

2. Place key and lock cylinder into glove compartment door handle.
3. Rotate lock cylinder counterclockwise 180 degrees to engage retainer tumbler.
4. Install glove compartment door cover.
