Park Brake Equalizer Cable

REMOVAL








1. Disable SIR System.
2. Remove console.
3. Remove park brake lever cover.
4. Remove park brake adjuster nut.
5. Remove park brake cables from equalizer assembly.
6. Pull park brake lever to highest position.

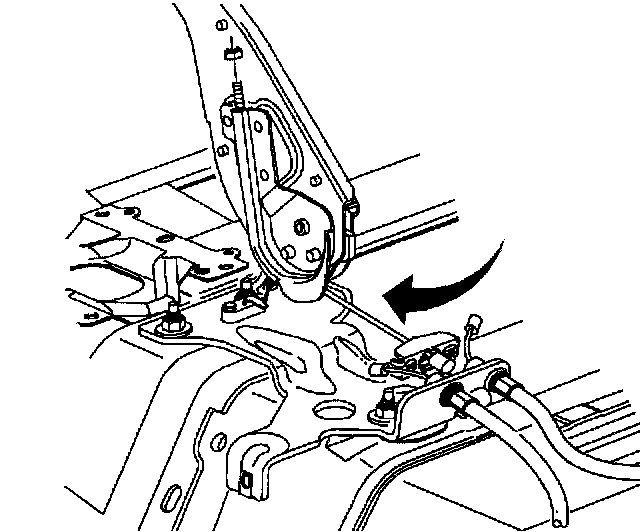

7. Lift equalizer cable over park brake indicator switch and swing forward. Pull cable down and out of park brake lever.

INSTALLATION





1. Slide equalizer cable into park brake lever. Hand start adjuster nut.
2. Swing equalizer cable rearward and lift over park brake indicator switch.
3. Release and lower park brake lever fully.
4. Install rear park brake cables into equalizer.
5. Adjust park brake.
6. Install park brake cover.
7. Install console.
8. Enable SIR System.
