Air Door Cable: Adjustments

MODE AND TEMPERATURE CABLE ADJUSTMENT (SERVICE CABLES) - (LHD VEHICLES ONLY)

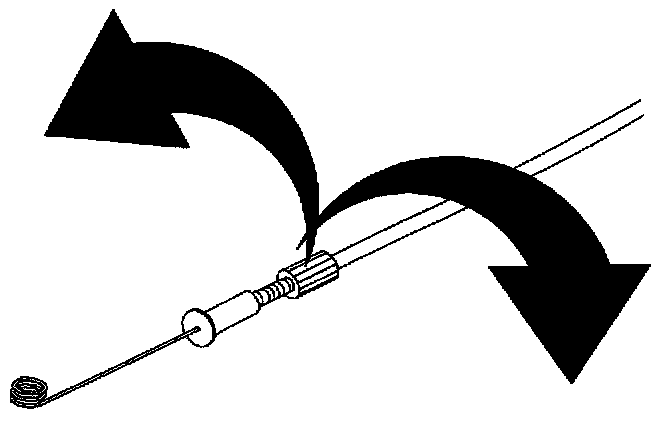

IMPORTANT: Adjust cables by holding cable housing and turning cable housing end.

MODE LEVER
^ If mode knob bounces back on defrost (right) side, shorten cable housing.
^ If mode knob bounces back on I/P outlet (left) side, lengthen cable housing.

TEMPERATURE CABLE
^ If temperature knob bounces back on hot (right) side, lengthen cable housing.
^ If temperature knob bounces back on cold (left) side, shorten cable housing.
