Home >> Saturn >> 2000 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Solenoid >> Diagrams

Canister Purge Solenoid: Diagrams

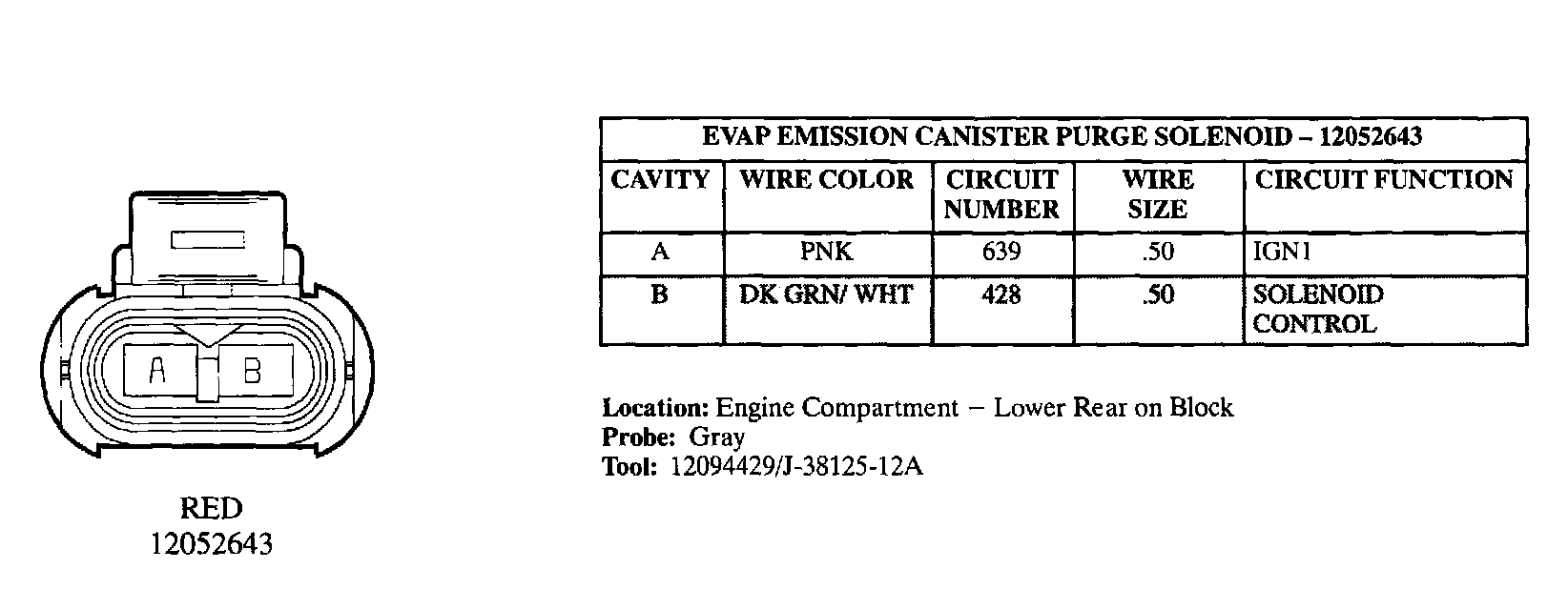

Evaporative Emission Canister Purge Solenoid:
