Starter Solenoid Clicks, Engine Does Not Crank

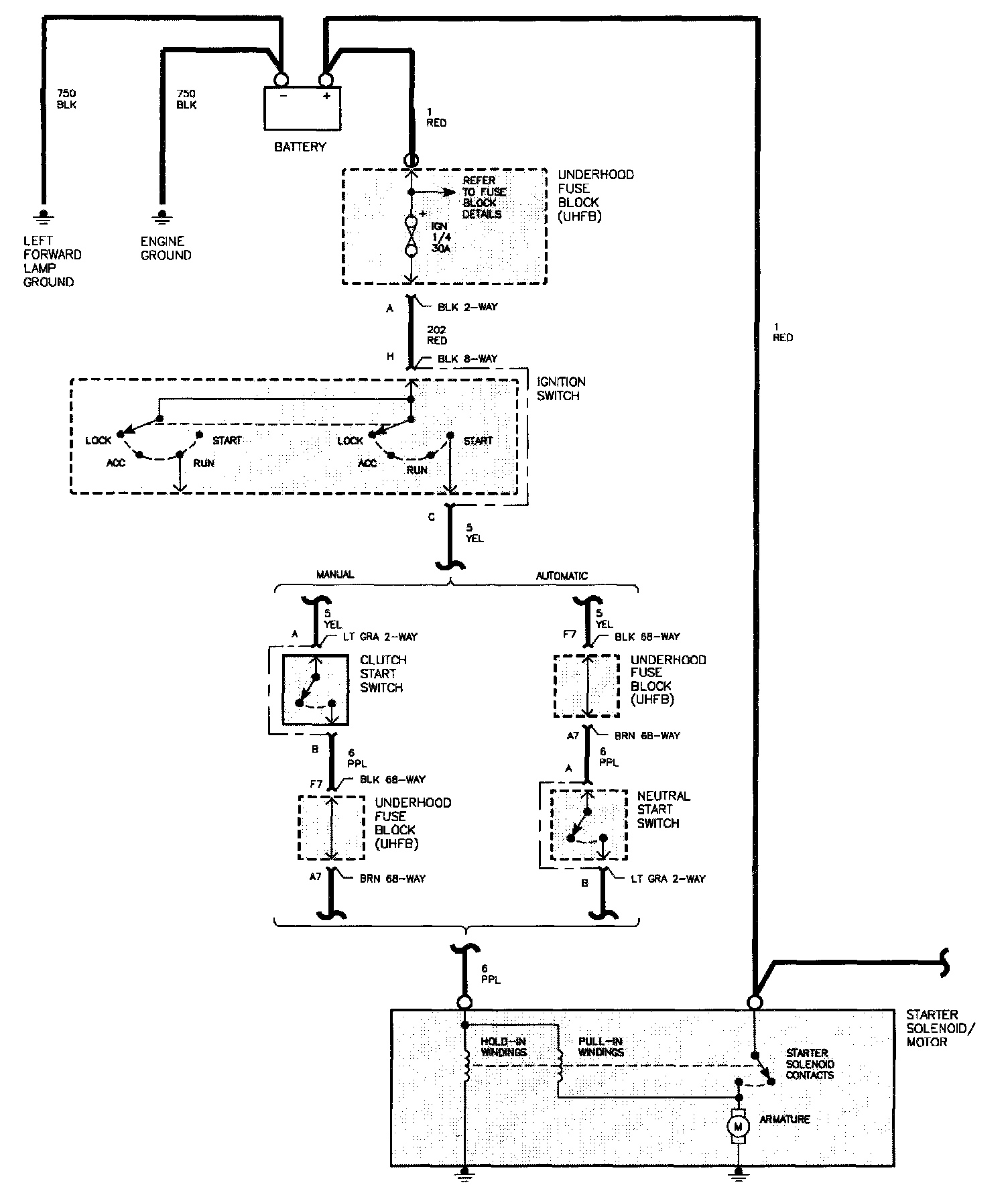

Wiring Diagram

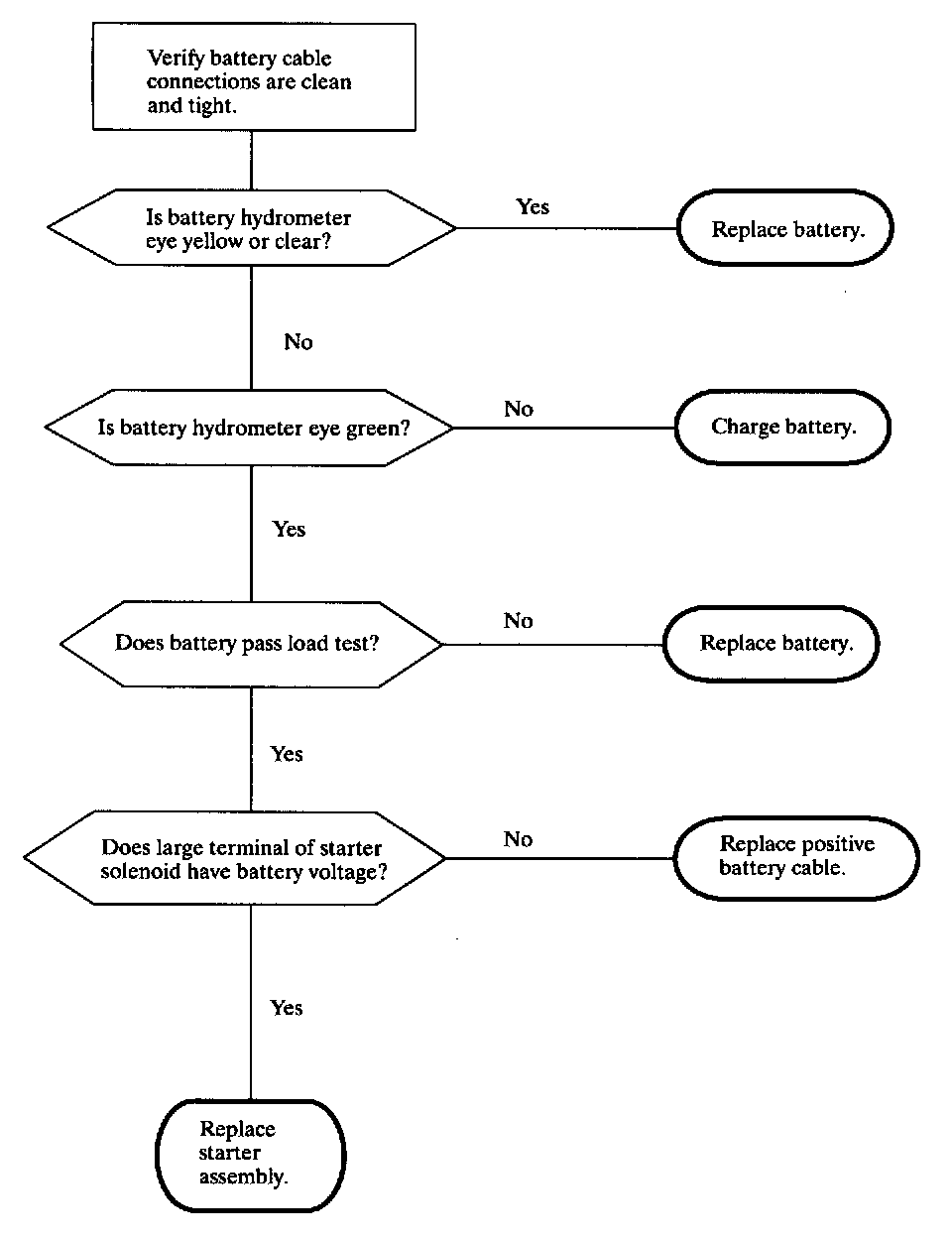

Diagnostic Chart

Click/No Crank:





IMPORTANT: Crank normal/No start. Refer to Engine/Emission Controls.
