Power Steering Fluid Reservoir: Service and Repair

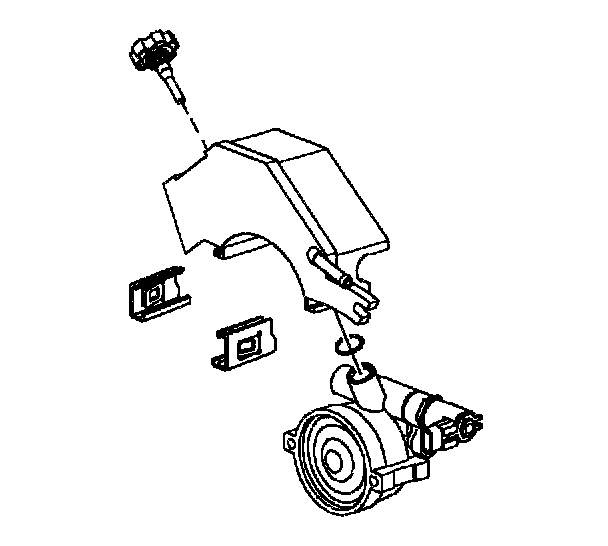

REMOVAL





1. Remove pump assembly from vehicle.
2. Remove reservoir retaining clips from reservoir assembly.
3. Remove reservoir from housing.
4. Remove O-ring seal from pump housing.

INSTALLATION

1. Lubricate new O-ring seal with power steering fluid and install into reservoir.
2. Install reservoir into pump housing. Make sure to push reservoir straight into housing.
3. Install reservoir retaining clips.
4. Install pump into vehicle.
5. Bleed power steering system. (Refer to "Power Steering Bleed Procedure".)
