Air Bypass Valve, Supercharger
Air Bypass Valve, Supercharger

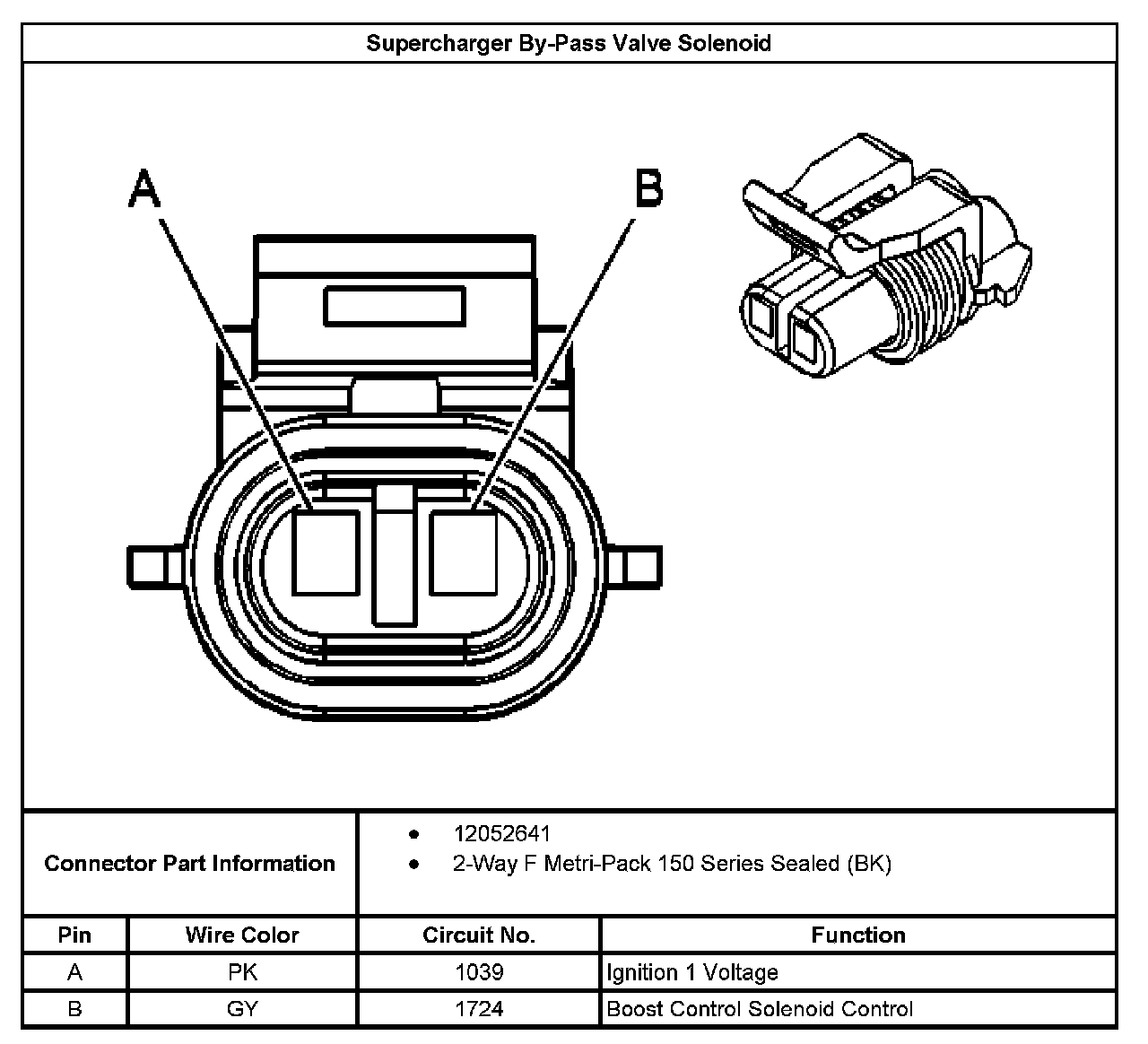

Super Charger By - Pass Valve Solenoid:
