Seat Belt Tensioner
>>
Seat Belt Pretensioner (Sedan)
Seat Belt Pretensioner (Sedan)
Seat Belt Pretensioner-LF (Sedan):

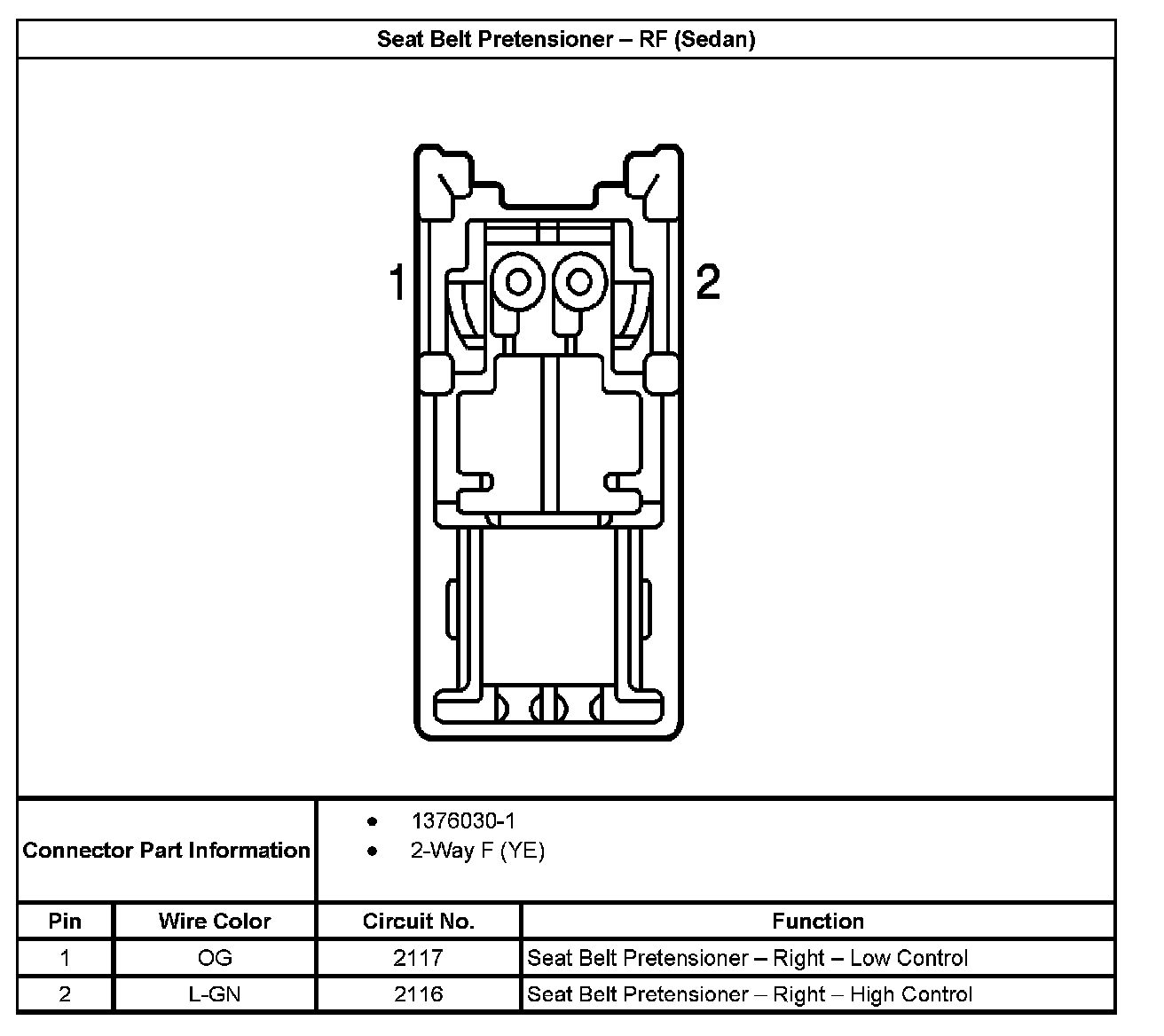

Seat Belt Pretensioner-RF (Sedan):
