Saturn
>>
2004
>>
ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
LF Door
LF Door

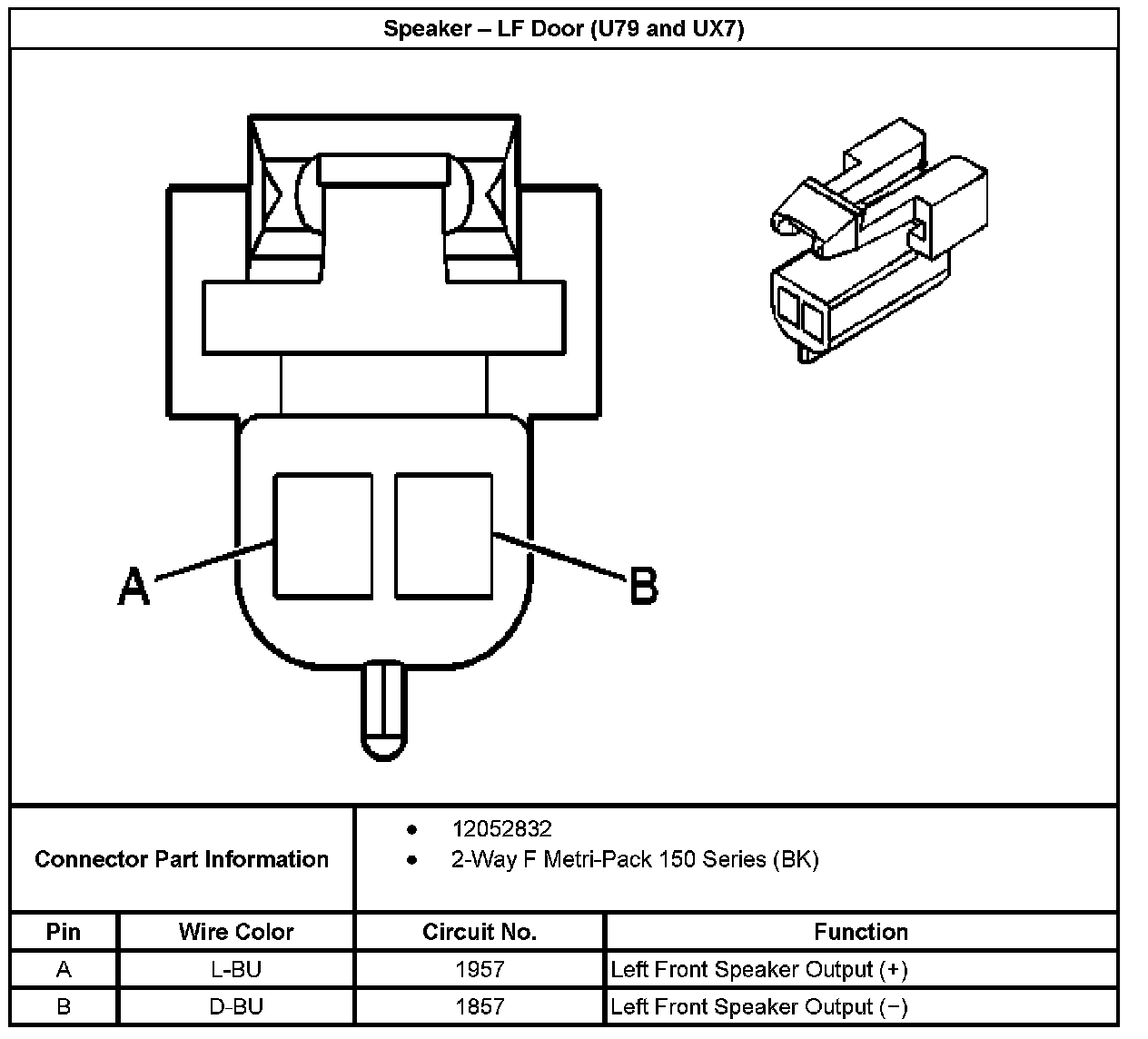

Speaker-LF Door (With RPO Code U79 And UX7):

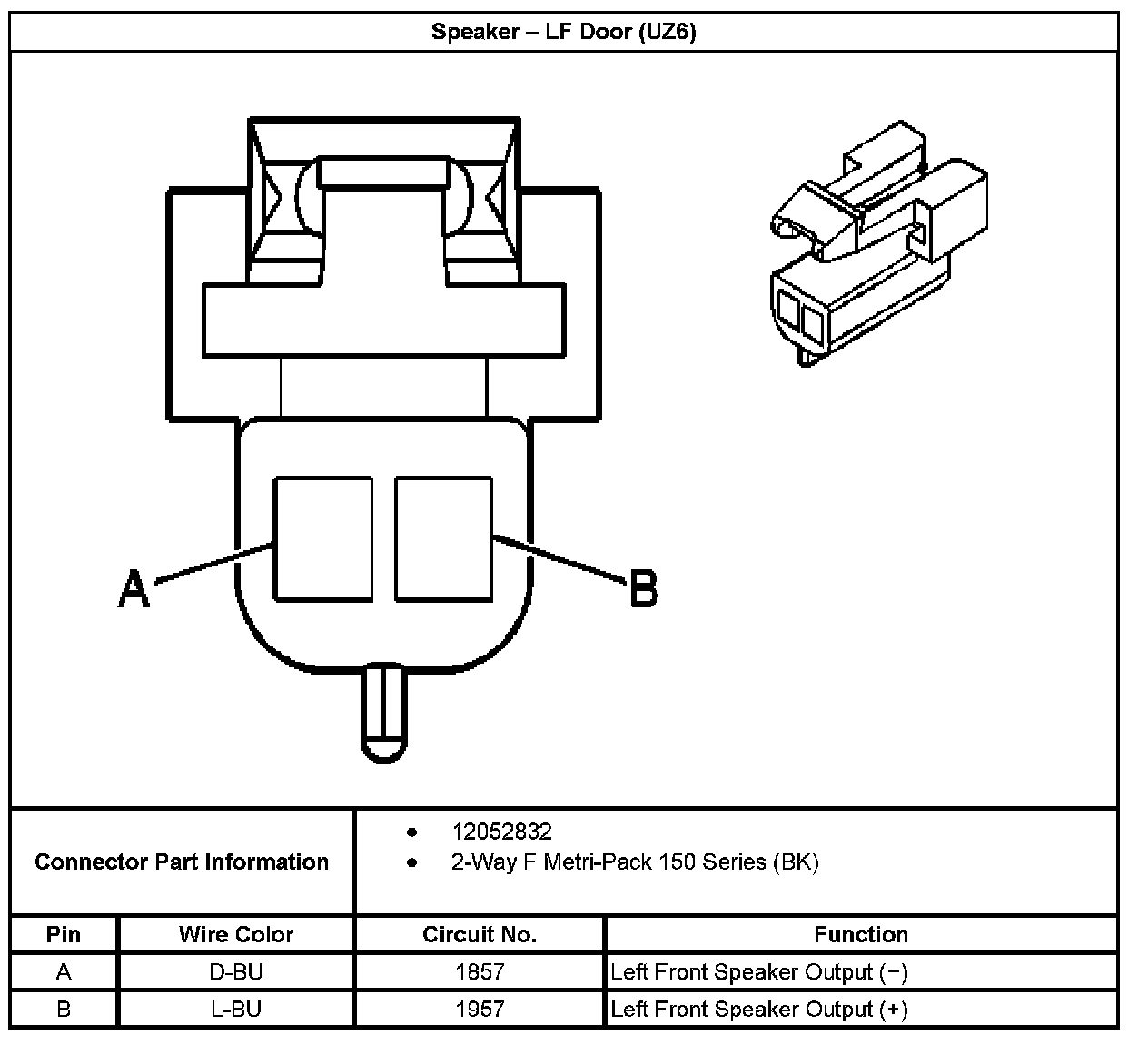

Speaker-LF Door (With RPO Code UZ6):

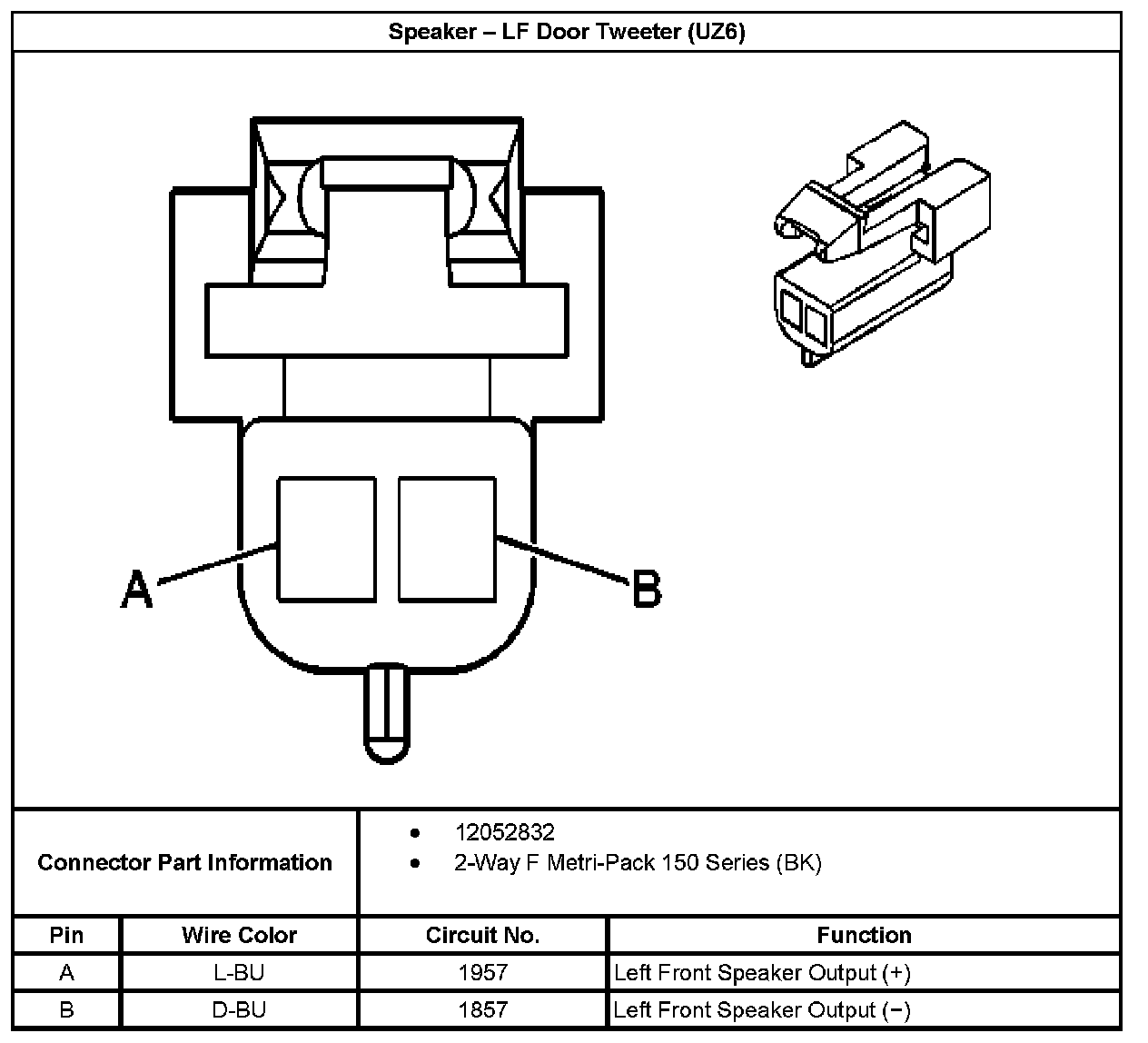

Speaker-LF Door Tweeter (With RPO Code UZ6):
