Air Outlet Replacement - Instrument Panel

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) trim panel.

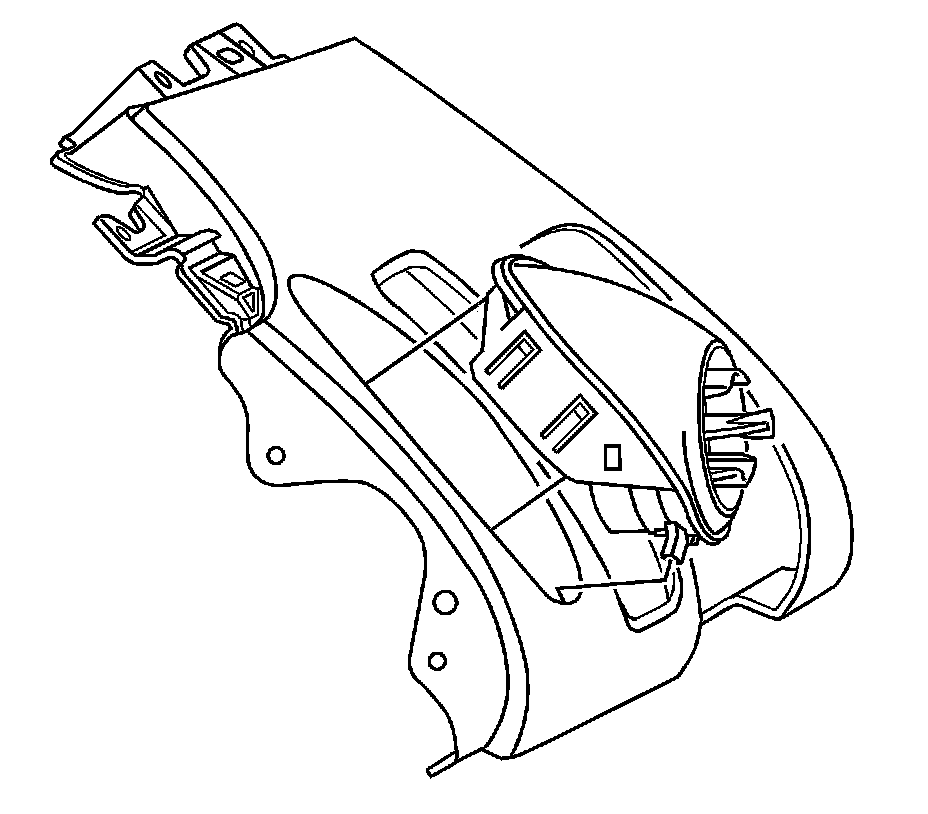

2. Remove the air outlet from the I/P trim panel.

INSTALLATION PROCEDURE




1. Install the air outlet to the I/P trim panel.

IMPORTANT: Verify that the two metal clips are installed on the right air outlet.

2. Install the instrument panel (I/P) trim panel.
