Saturn
>>
2005
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

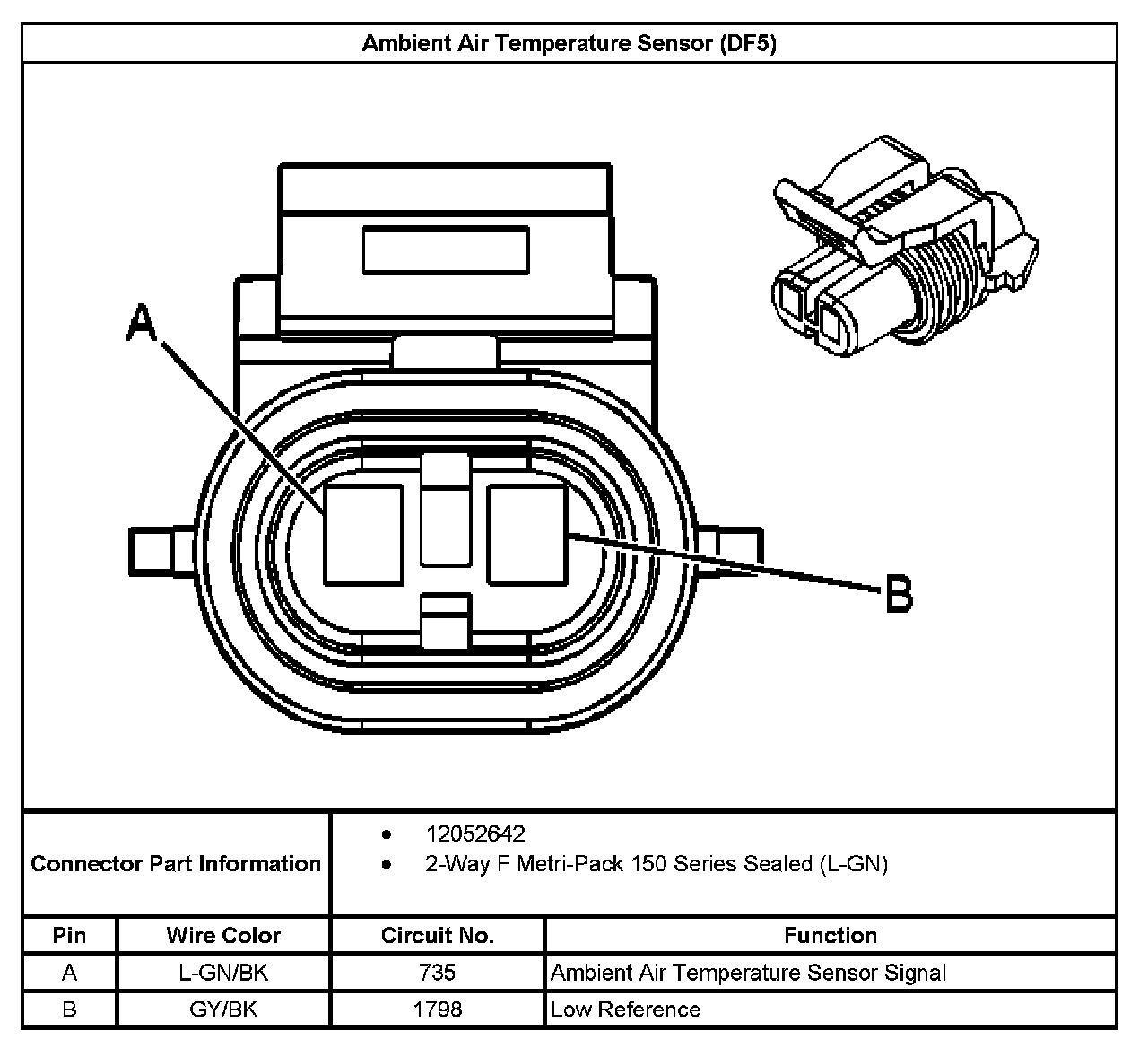

Ambient Air Temperature Sensor (With RPO Code DF5):
