Diesel Data: Automotive Repair

Home >> Saturn >> 2005 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100 - C199 >> C160

C160

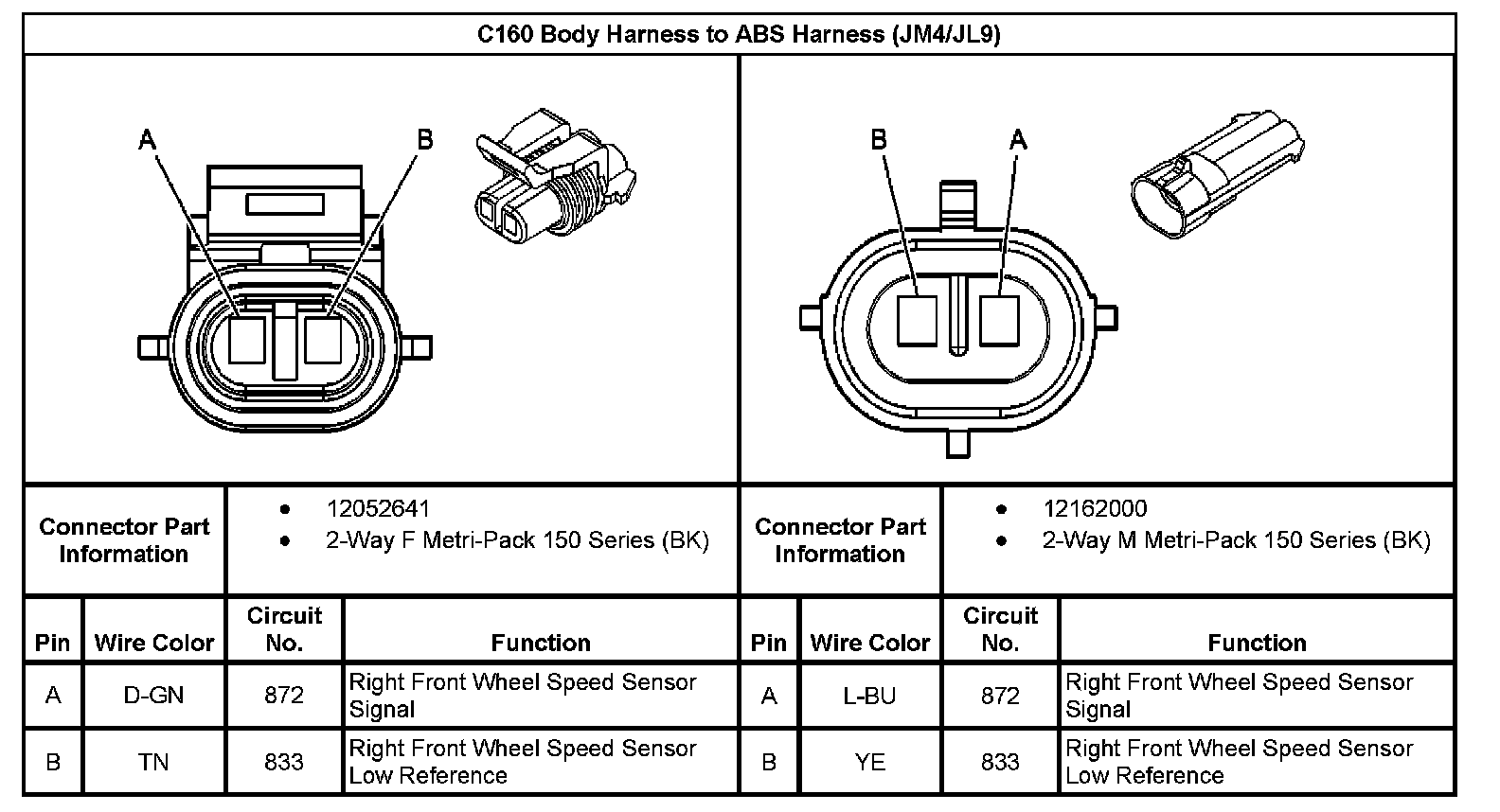

C160 Body Harness To ABS Harness (With RPO Code JM4/JL9):
