Air Bypass Valve Actuator, Supercharger
Air Bypass Valve Actuator, Supercharger

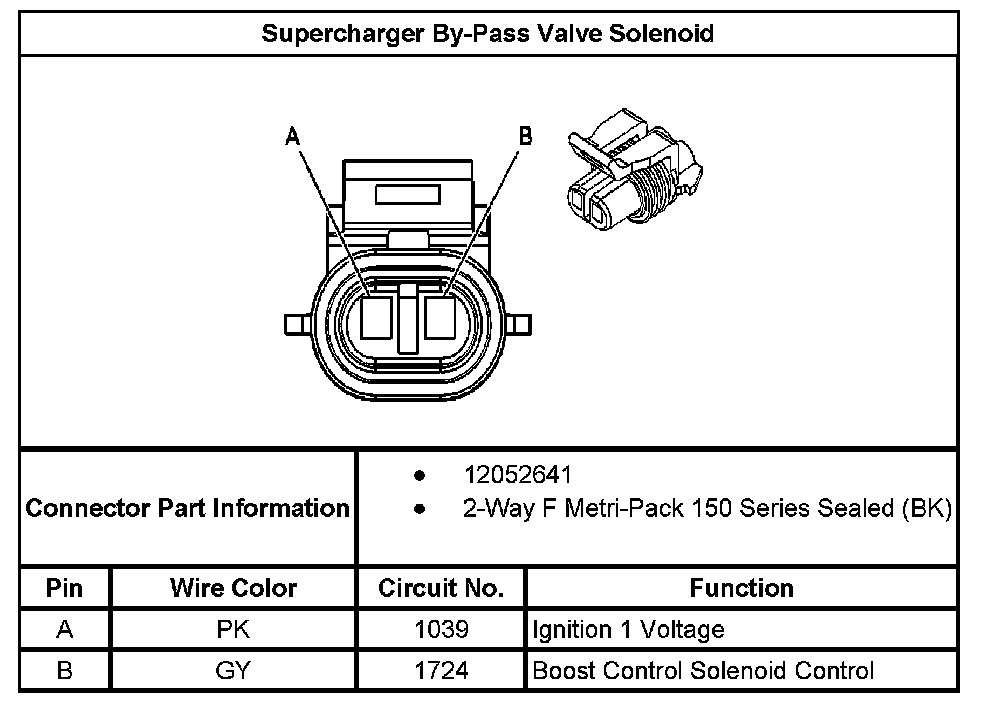

Supercharger By-Pass Valve Solenoid:
