Seat Belt Tensioner
Seat Belt Tensioner

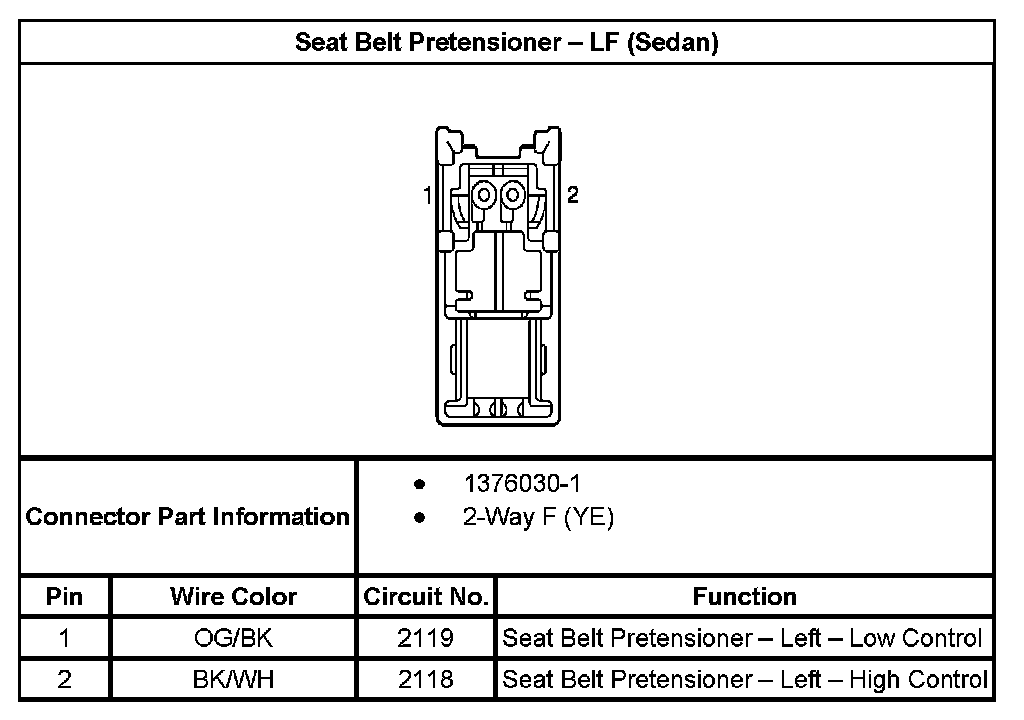

Seat Belt Pretensioner - LF (Sedan):

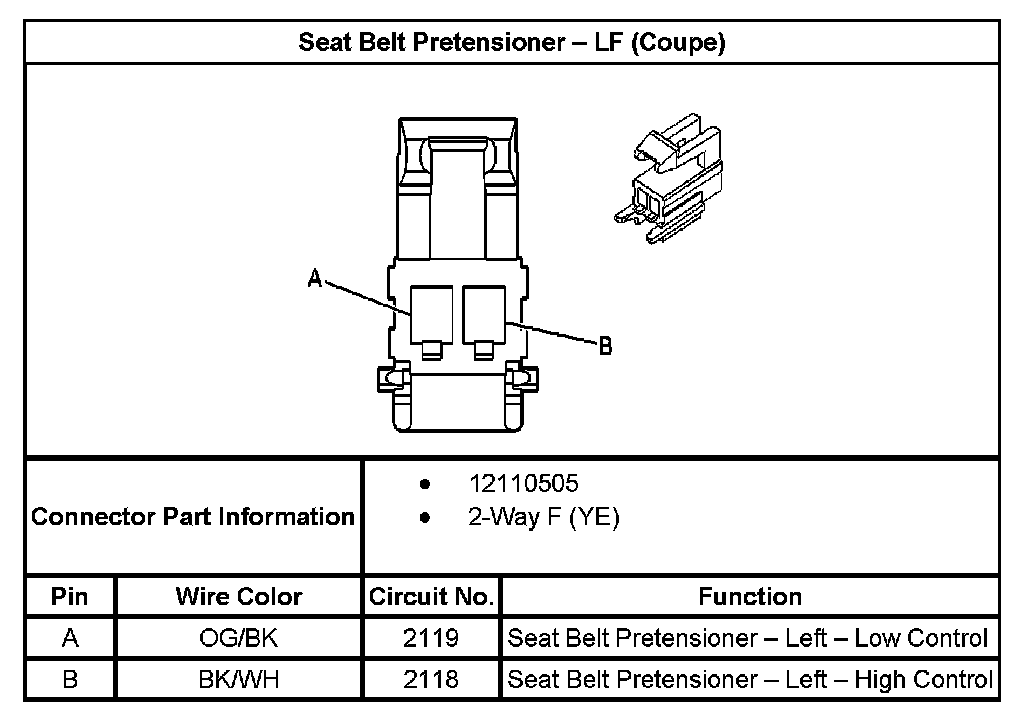

Seat Belt Pretensioner - LF (Coupe):

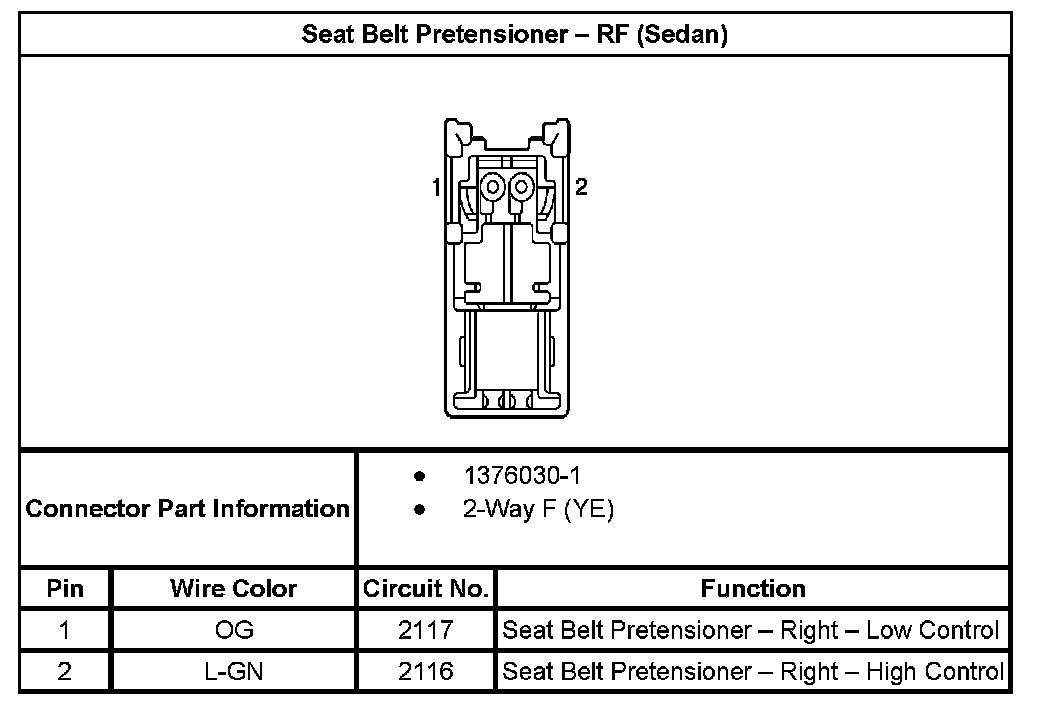

Seat Belt Pretensioner - RF (Sedan):

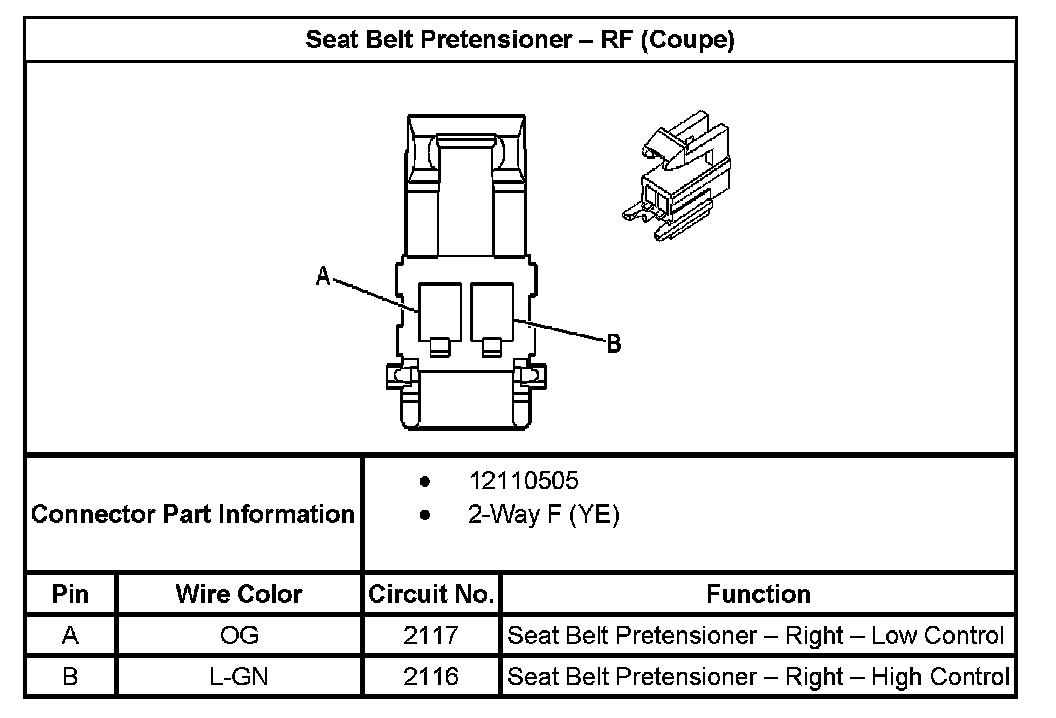

Seat Belt Pretensioner - RF (Coupe):
