Brake Light Switch
Brake Light Switch
Stop Lamp Switch - Lower:
Stop Lamp Switch - Upper:

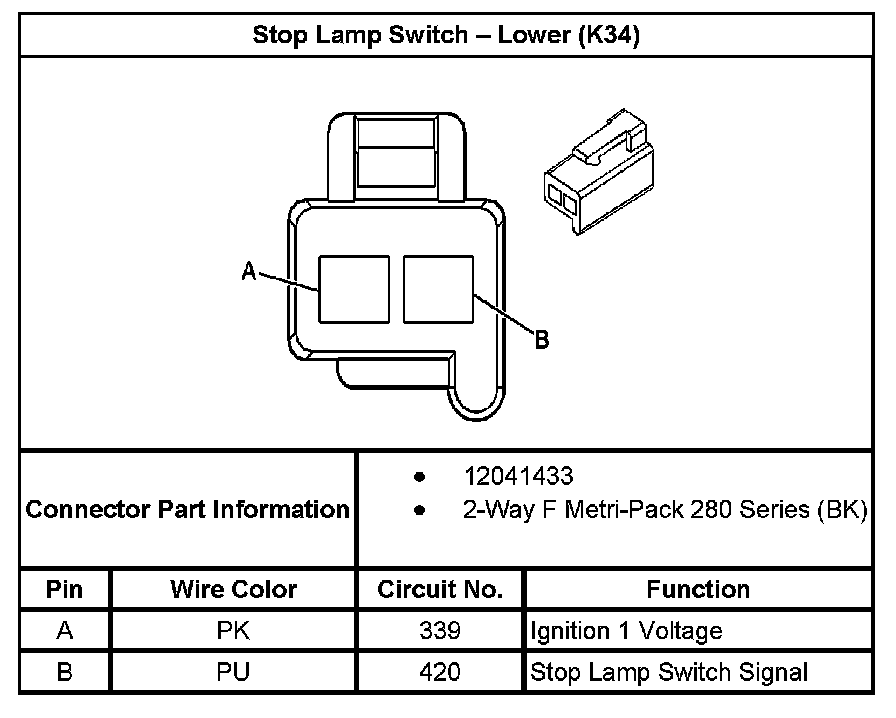

Stop Lamp Switch - Lower (With RPO Code K34):

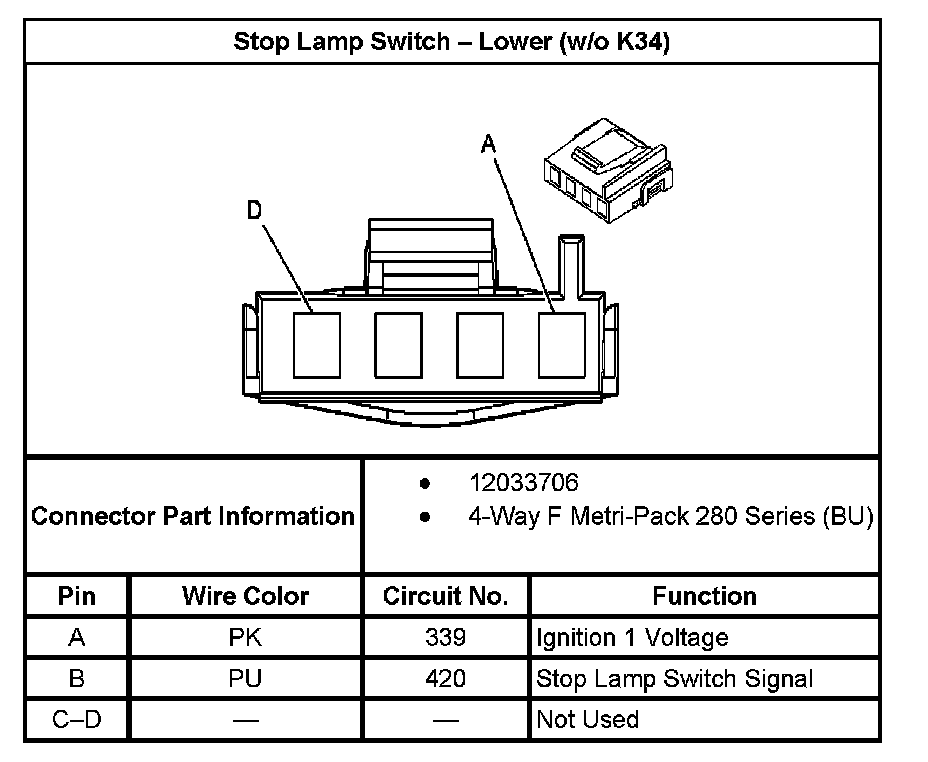

Stop Lamp Switch - Lower (Without RPO Code K34):
