Diesel Data: Automotive Repair

Home >> Saturn >> 2006 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C400 - C499 >> C410

C410

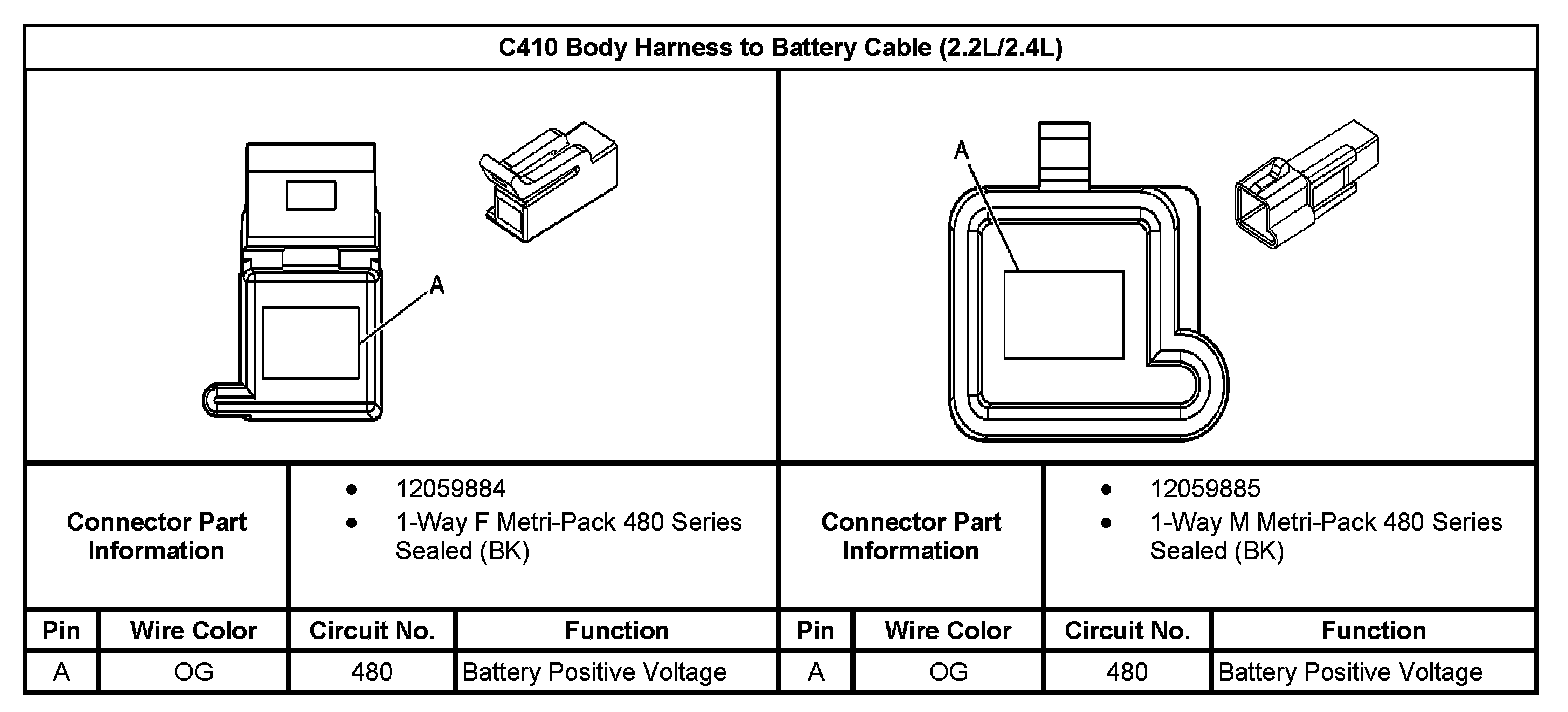

C410 Body Harness To Battery Cable:
