Air Bypass Valve, Supercharger

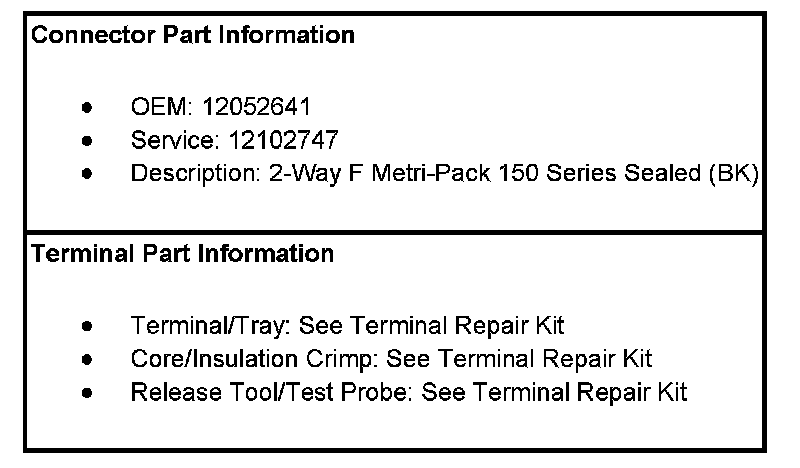

Engine Controls Connector End Views

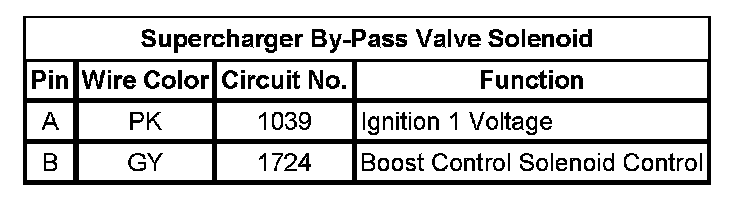

Supercharger By-Pass Valve Solenoid
