Air Bypass Valve Solenoid, Turbocharger
Air Bypass Valve Solenoid, Turbocharger

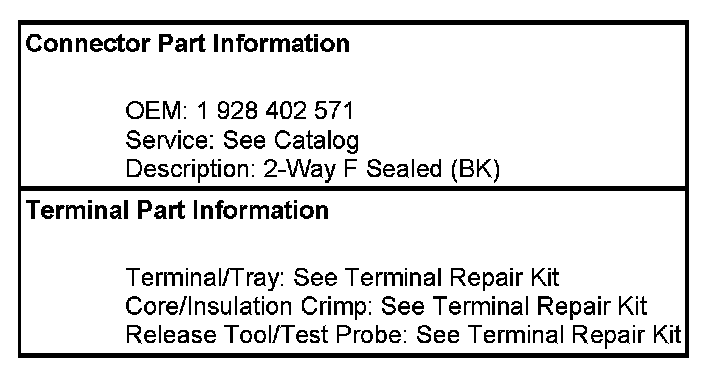

Engine Controls Connector End Views

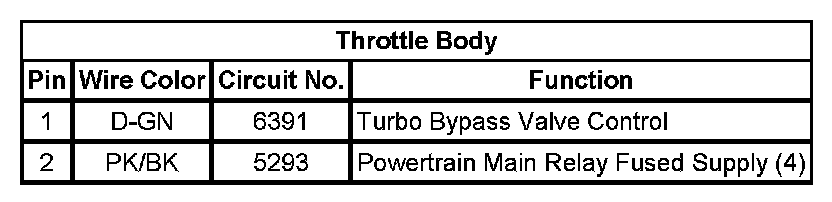

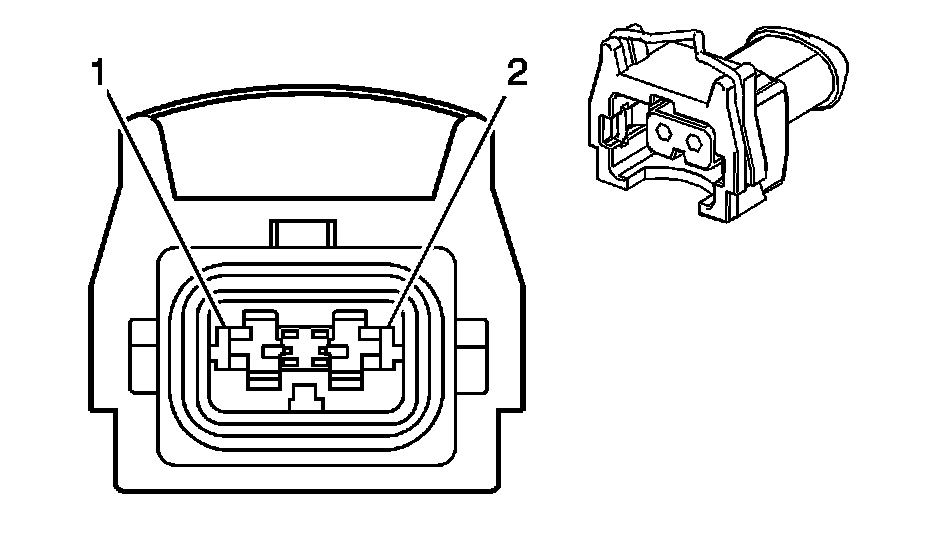

Turbo Bypass Valve Control Solenoid
