Front No. 2 Speaker Assy

Audio & Visual System:

FRONT NO.2 SPEAKER ASSEMBLY

REPLACEMENT
1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
4. REMOVE FRONT DOOR SERVICE HOLE COVER LH

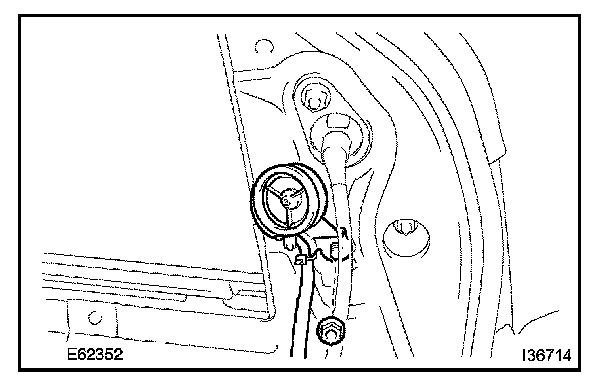

5. REMOVE FRONT NO.2 SPEAKER ASSEMBLY
a. Disconnect the connector.
b. Remove the nut and the front No.2 speaker assembly.

6. INSTALL FRONT NO.2 SPEAKER ASSEMBLY
a. Install the front No.2 speaker assembly with the nut.

Torque: 8.0 Nm (82 kgf.cm, 71 in.lbf)

b. Connect the connector.
