Front No. 2 Speaker Assy

Audio & Visual System:

FRONT NO.2 SPEAKER ASSEMBLY

REPLACEMENT
1. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY NO.2




2. REMOVE FRONT NO.2 SPEAKER ASSEMBLY

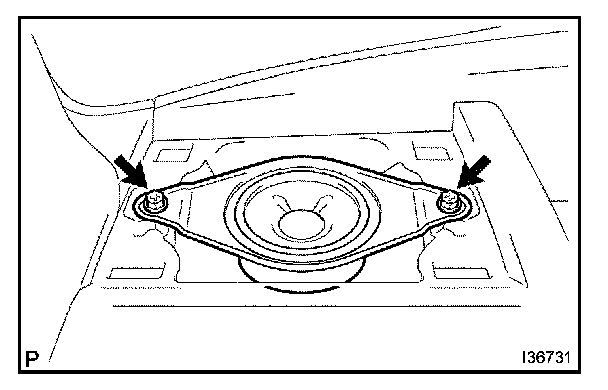

a. Remove the 2 bolts and the front No.2 speaker assembly.
b. Disconnect the connector.
