Air Mix Control Servo Motor

INSPECTION




1. INSPECT AIR MIX CONTROL SERVO MOTOR
a. Inspect the servo motor operation.

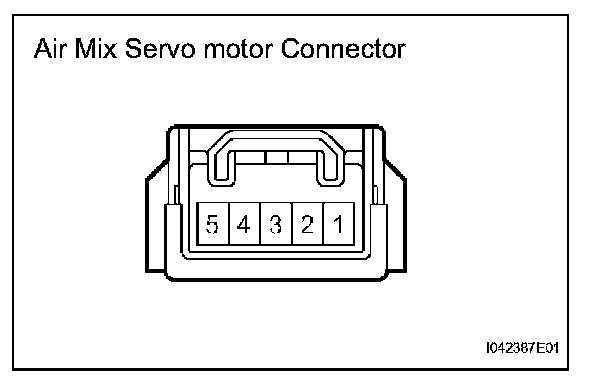

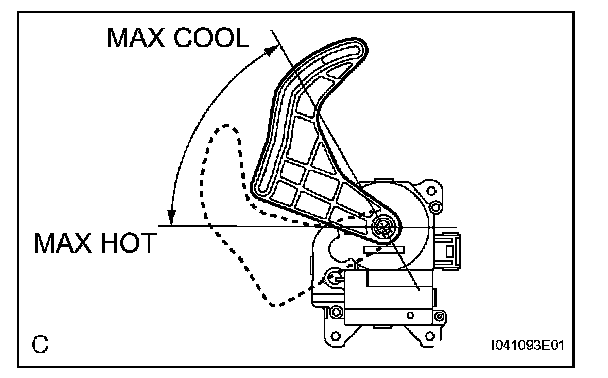

1. Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, and then check that the lever turns to the "MAX HOT" position smoothly.
2. Connect the positive (+) lead from the battery to terminal 5 and negative (-) lead to terminal 4, and then check that the lever turns to the "MAX COOL" position smoothly.
If the operation is not as specified, replace the air mix control servo motor.
