Front No. 1 Speaker
Front No. 1 Speaker
INSPECTION
1.

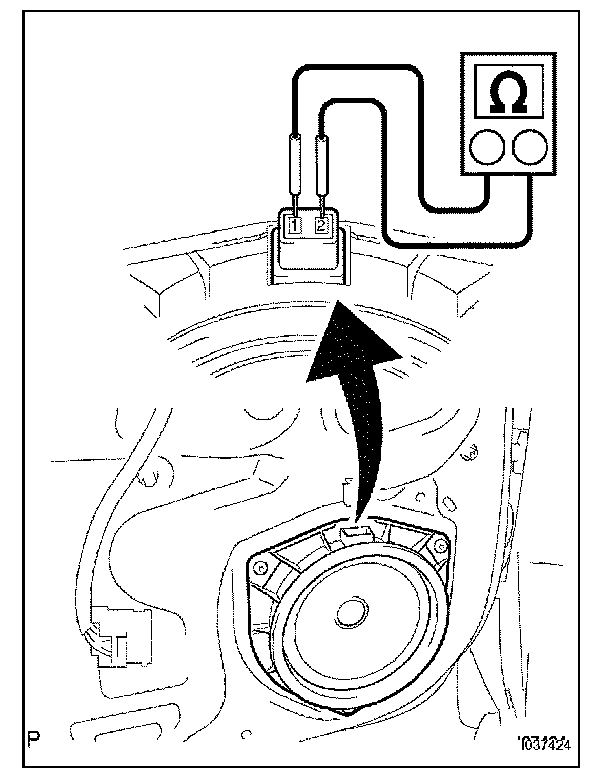

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
a.

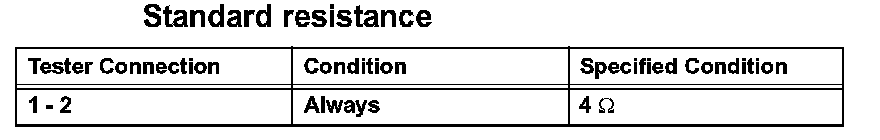

Measure the resistance of the speaker.
