Air Door Actuator / Motor: Testing and Inspection

INSPECTION







1. INSPECT DAMPER SERVO SUB-ASSEMBLY

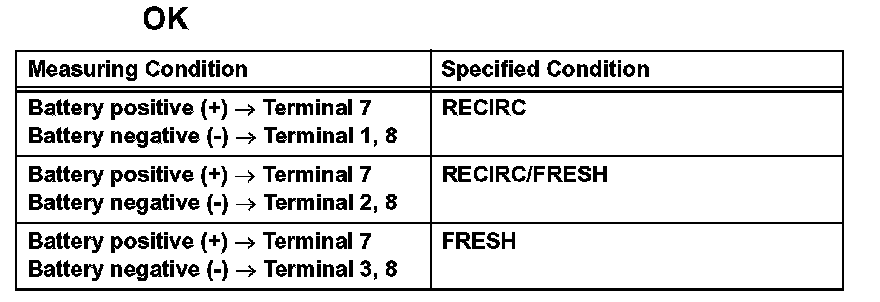

a. Check that the damper servo moves as follows.

If the result is not as specified, replace the damper servo.
