Diesel Data: Automotive Repair

Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints >> Torque

Torque

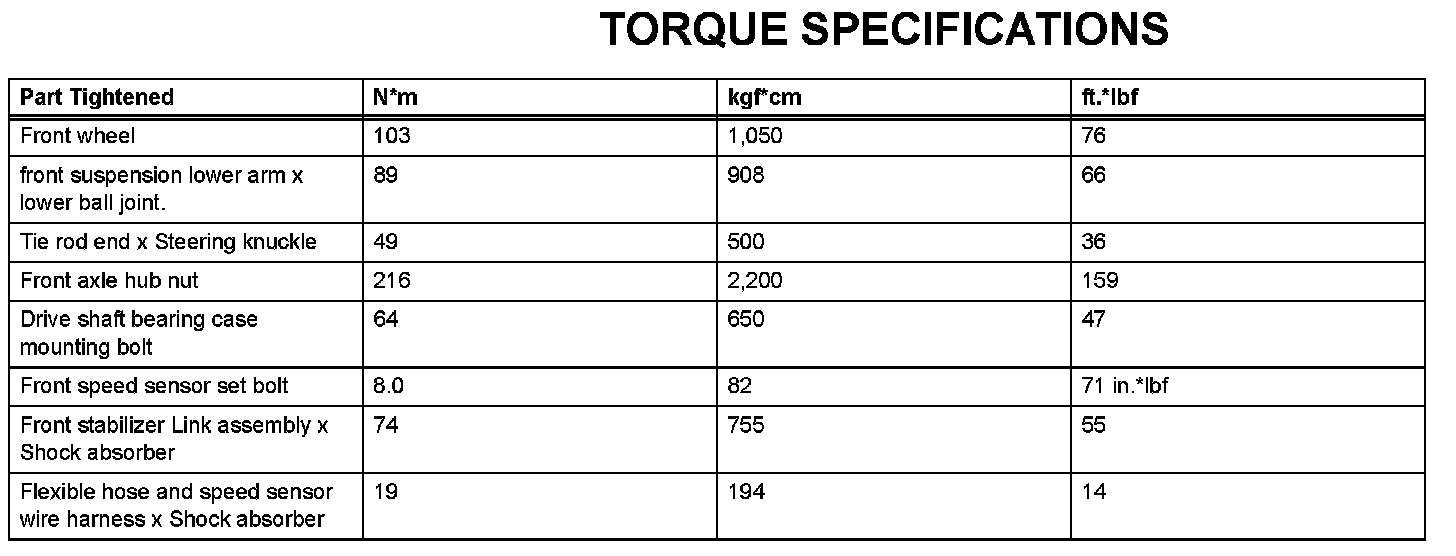

Drive Shaft - Torque Specifications:

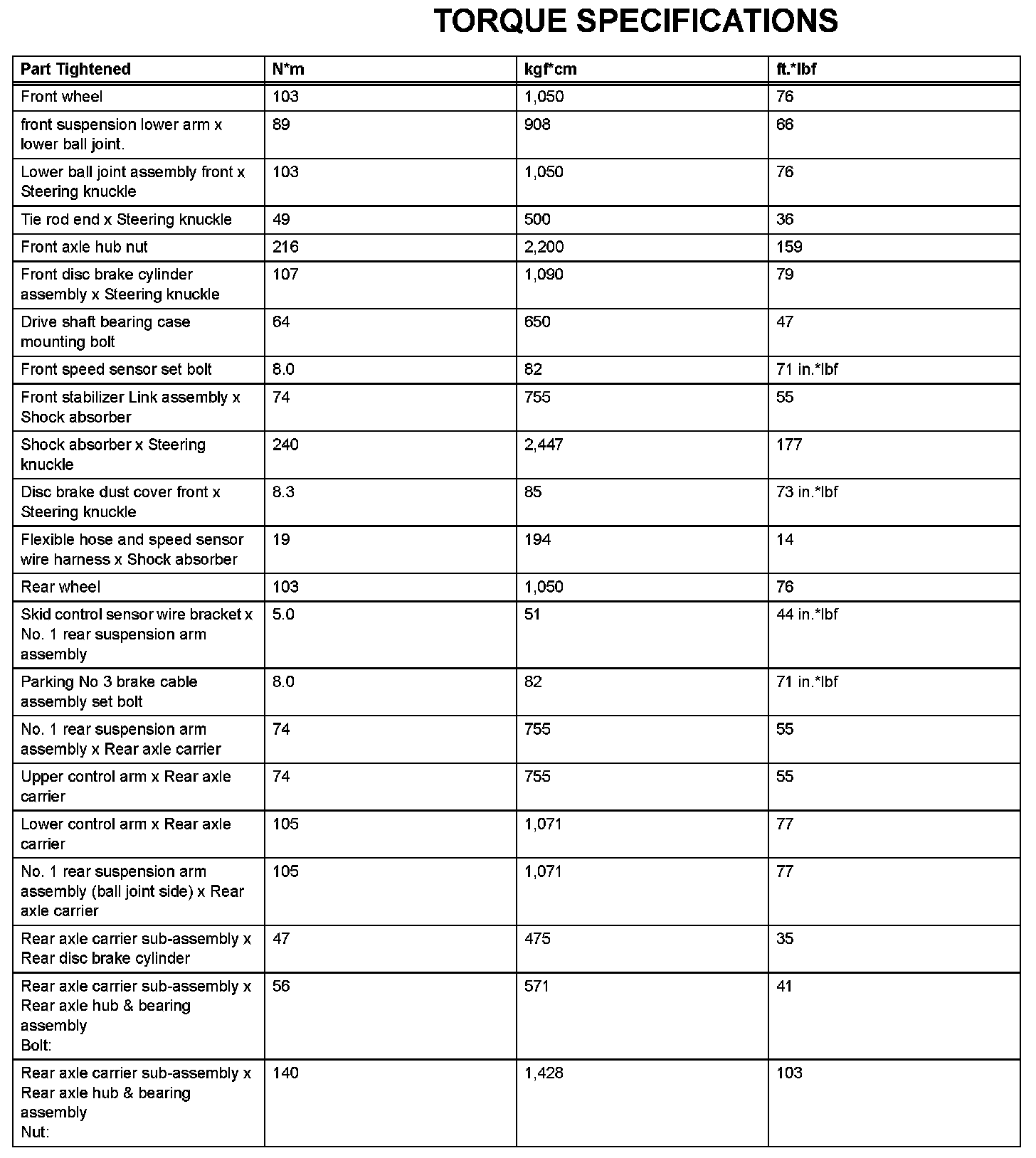

Axle - Torque Specifications:
