Diesel Data
: Automotive Repair
Home
>>
Scion
>>
2009
>>
tC L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Pedal Assy
>>
Service and Repair
>>
Components
Components

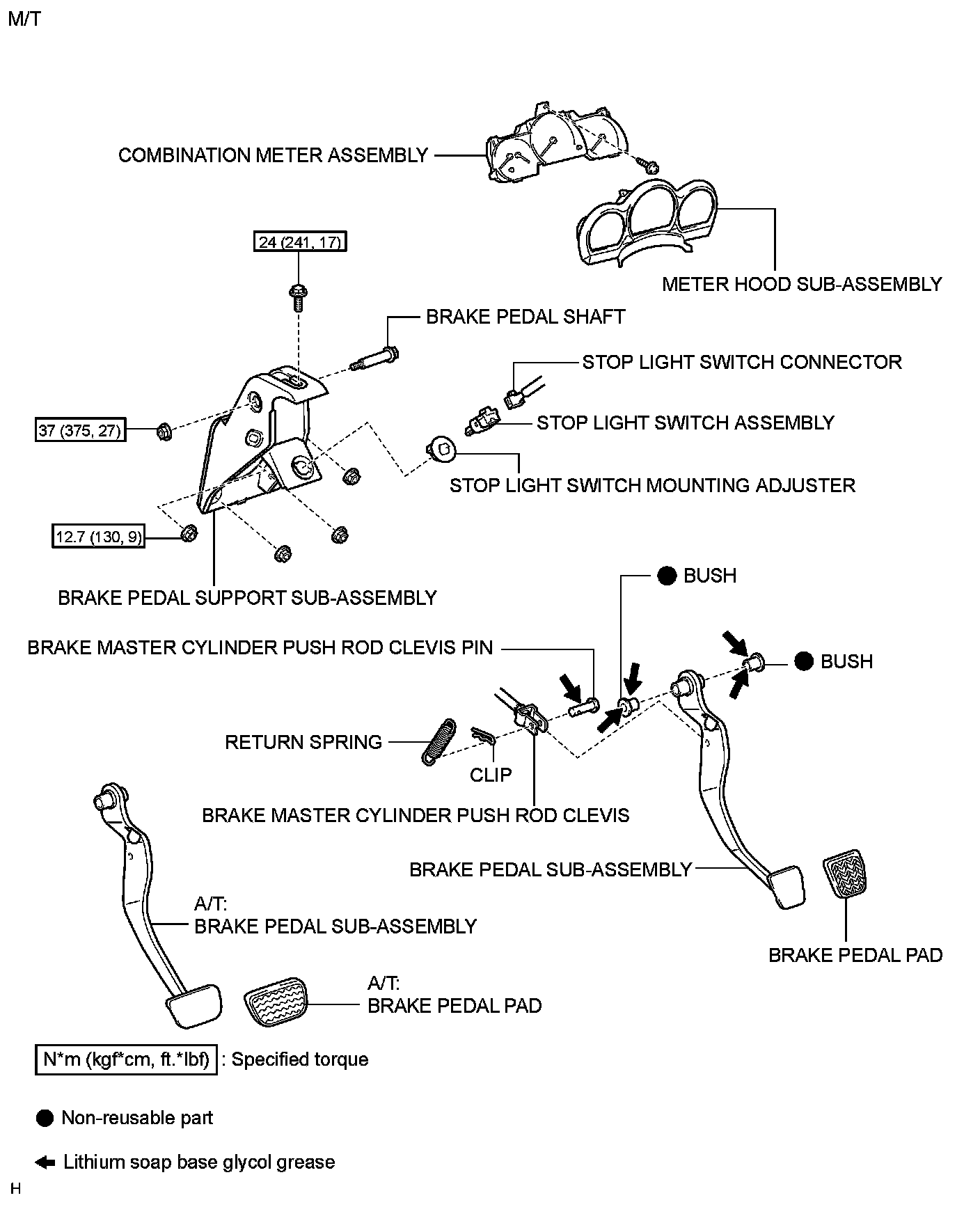

BRAKE: BRAKE PEDAL: COMPONENTS
BRAKE PEDAL: COMPONENTS
