Removal

AUDIO / VISUAL: LUGGAGE SPEAKER: REMOVAL

1. REMOVE DECK BOARD SUB-ASSEMBLY

2. REMOVE BACK DOOR SCUFF PLATE Removal

3. REMOVE NO. 1 DECK BOARD Removal

4. REMOVE BOX SPEAKER ASSEMBLY

(a) Disconnect the connector.

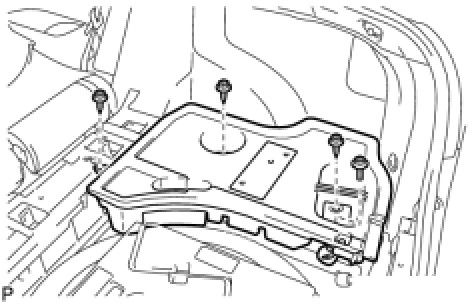

(b) Remove the 3 screws and the bolt.
