Inspection

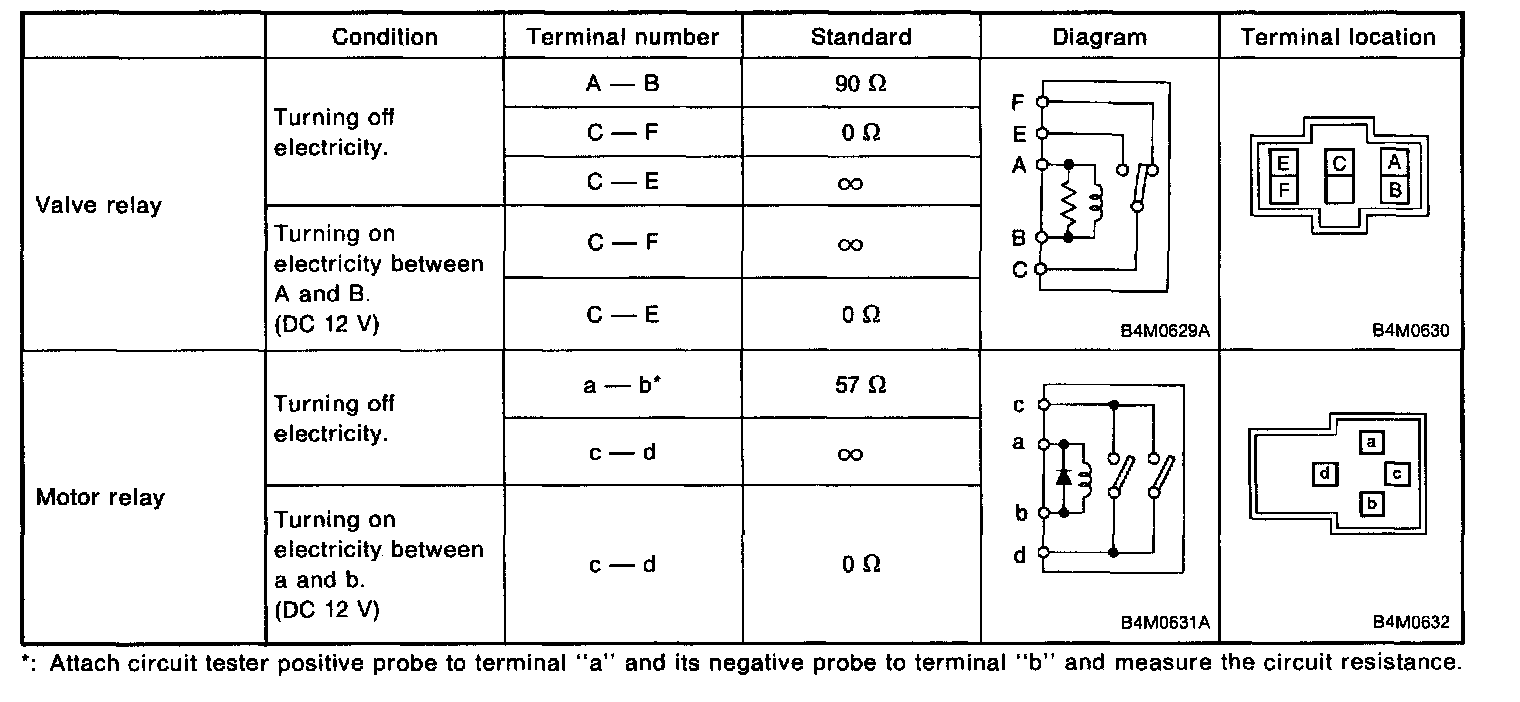

INSPECTION
1) Check connected and fixed condition of connector
2) Check for discontinuity or short circuits.
