Antenna: Testing and Inspection
Radio, Speaker and AntennaPOWER ANTENNA

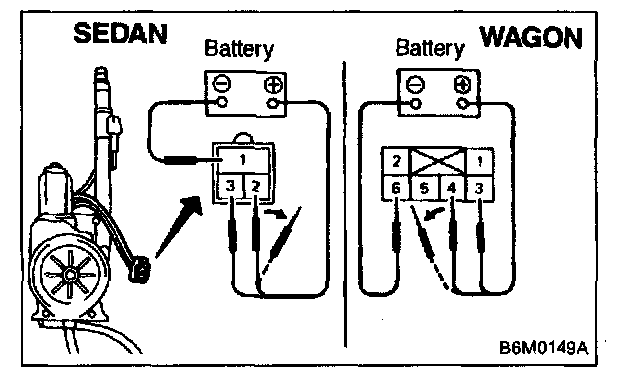

1. Connect battery positive (+) terminal to terminal No.3 and connect terminal No.1 (SEDAN) or No.6 (WAGON) to ground. Ensure that antenna rod extends properly when battery positive (+) terminal is connected to terminal No.2 (SEDAN) or No.4 (WAGON).
2. Ensure that antenna rod retracts properly when battery positive (+) terminal is disconnected from terminal No.2 (SEDAN) or No.4 (WAGON).
