Home >> Subaru >> 2004 >> Impreza WRX STI F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Locations

Seat Belt: Locations

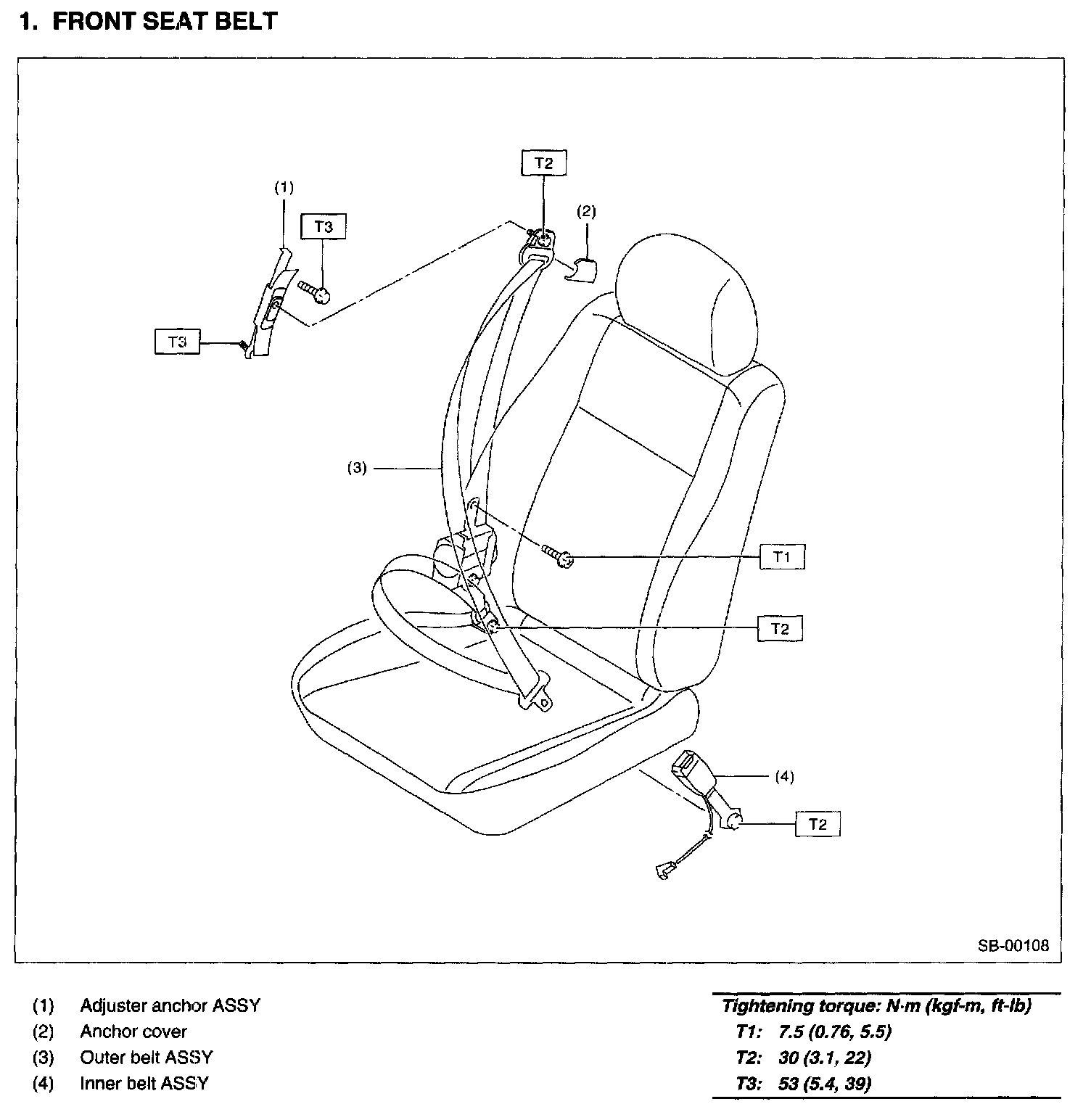

Front Seat Belt:

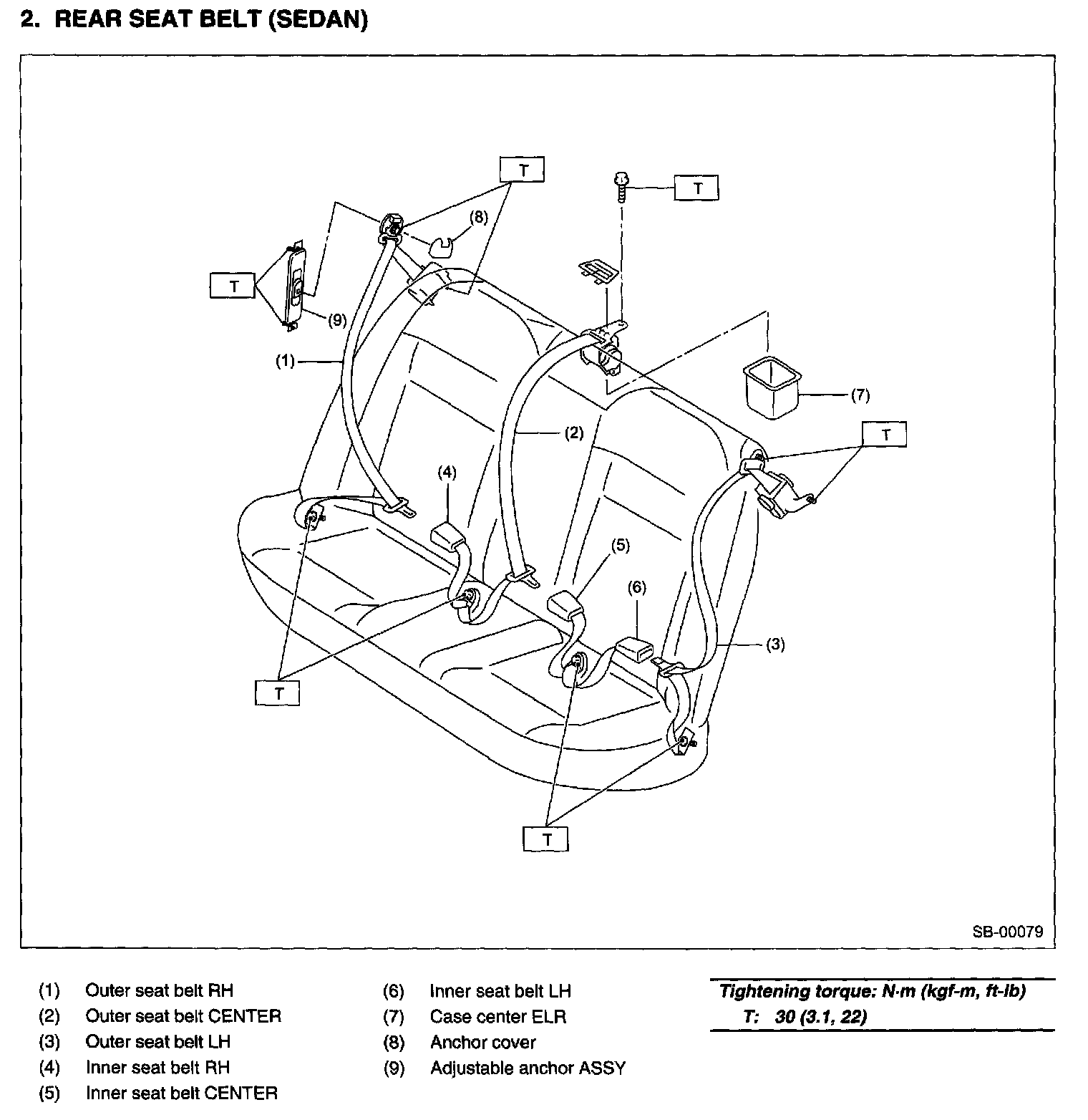

Rear Seat Belt (Sedan):

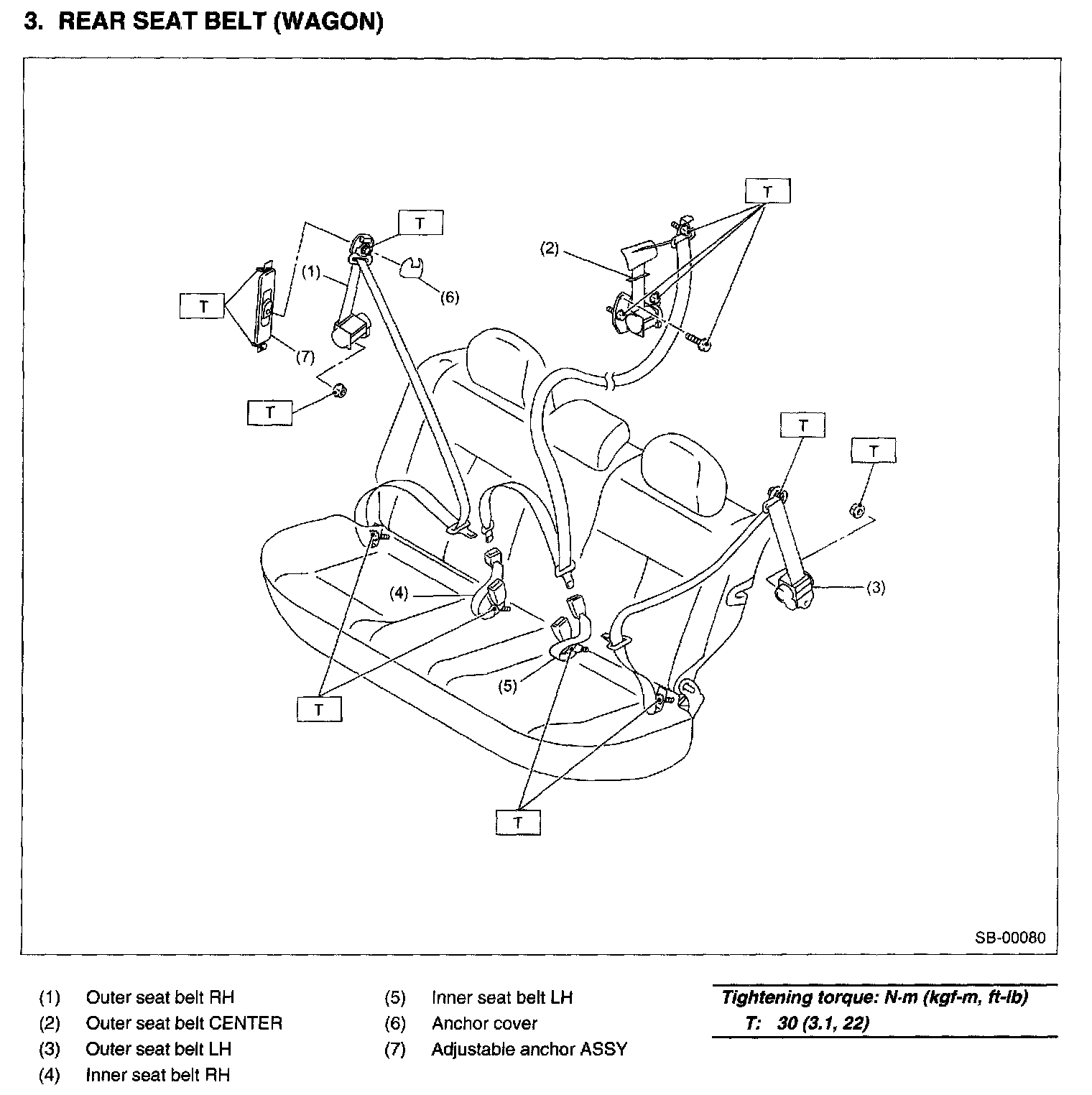

Rear Seat Belt (Wagon):
