Rear Seat Belt

Rear Seat Belt

REMOVAL

OUTER BELT SIDE (SEDAN)
1. Remove the rear seat.
2. Remove the side sill rear lower cover.




3. Remove the seat belt lower anchor bolt.

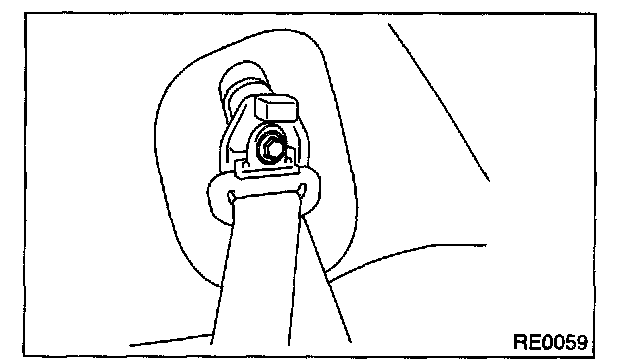

4. Remove the anchor cover. Remove the bolt and shoulder anchor from pillar.
5. Remove the quarter pillar trim.

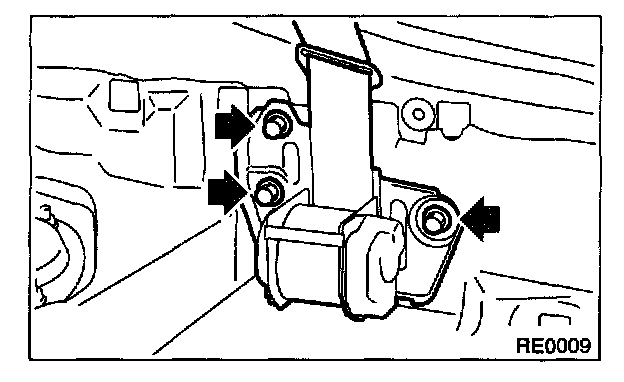

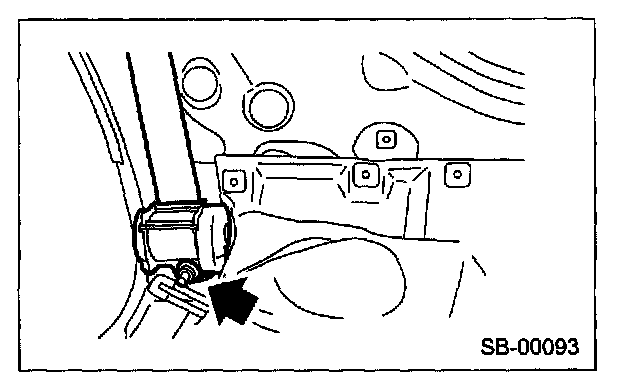

6. Remove the bolts, and then detach the seat belt.

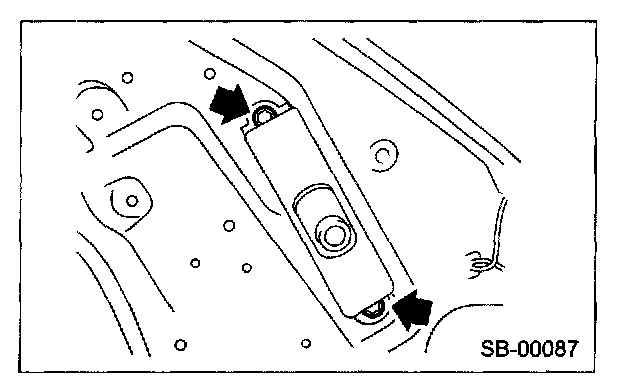

7. Remove the two bolts and adjustable anchor ASSY.

OUTER BELT CENTER (SEDAN)
1. Remove the rear seat.




2. Remove the seat belt lower anchor bolt.
3. Remove the quarter pillar trim.
4. Remove the rear shelf trim.

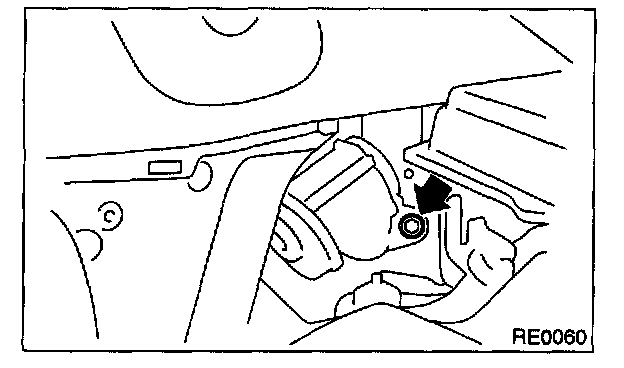

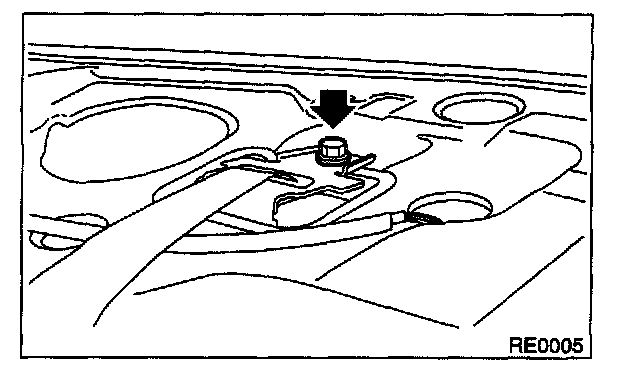

5. Remove the bolts, and then detach the seat belt.

INNER BELT (SEDAN)
1. Remove the rear cushion.

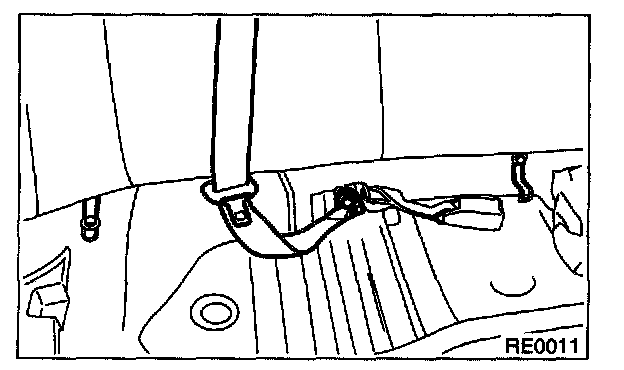

2. Remove the bolts, and then detach the inner belt.

OUTER BELT SIDE (WAGON)
1. Remove the luggage floor mat.
2. Remove the rear seat.
3. Remove the side sill rear lower cover.

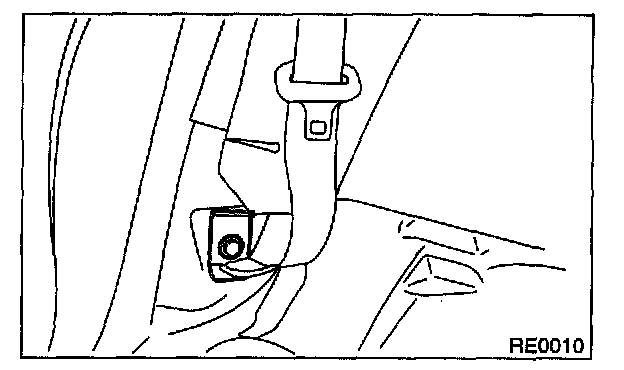

4. Remove the seat belt lower anchor bolt.

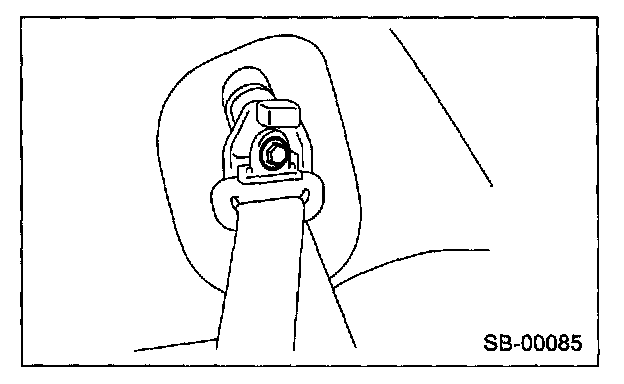

5. Remove the anchor cover. Remove the bolt and shoulder anchor from pillar.
6. Remove the rear quarter trim.




7. Remove the bolts, and then detach the outer belt side.




8. Remove the two bolts and adjustable anchor ASSY.

OUTER BELT CENTER (WAGON)

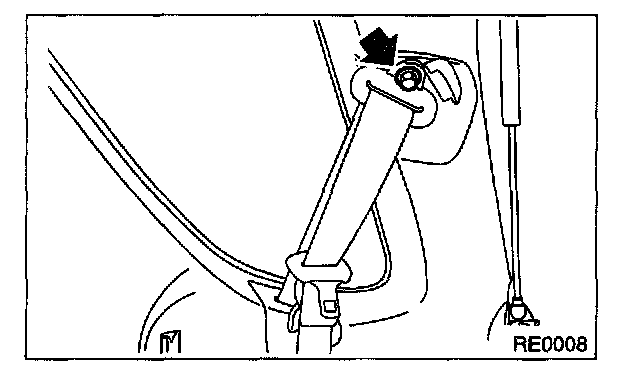

1. Loosen the shoulder anchor bolt, and then detach the shoulder anchor from quarter pillar.
2. Remove the quarter trim.




3. Remove the three bolts, and then detach the outer belt center.

INNER BELT (WAGON)
1. Remove the rear cushion.

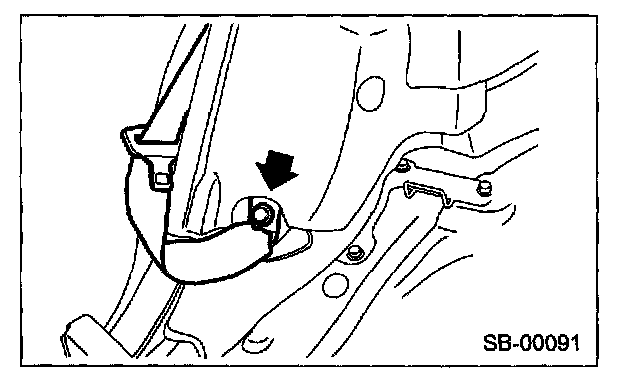

2. Remove the bolt, and then detach the inner belt.

INSTALLATION

OUTER BELT SIDE (SEDAN)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts can be smoothly extended and wound.

OUTER BELT CENTER (SEDAN)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts can be smoothly extended and wound.

INNER BELT (SEDAN)
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.

OUTER BELT SIDE (WAGON)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts can be smoothly extended and wound.

OUTER BELT CENTER (WAGON)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

INNER BELT (WAGON)
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.
