Antenna Amplifier: Testing and Inspection
Antenna Amplifier
INSPECTION
Measure the resistance of
antenna amplifier
.
-

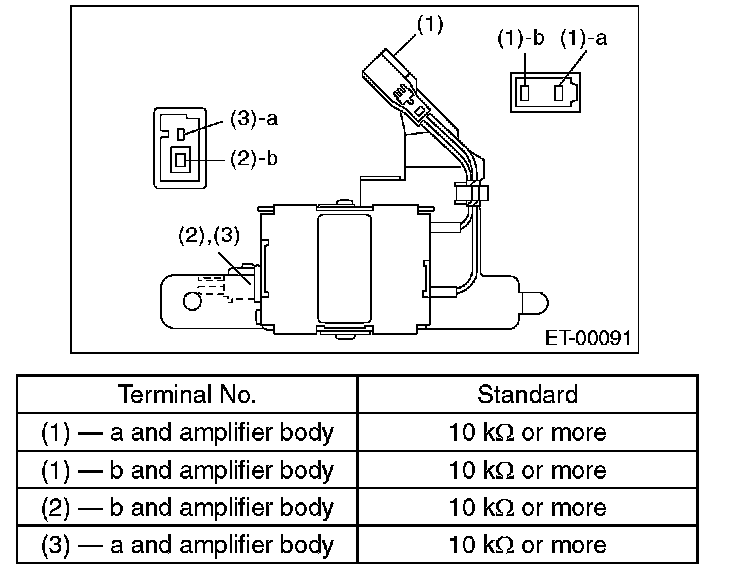

Sedan model
-

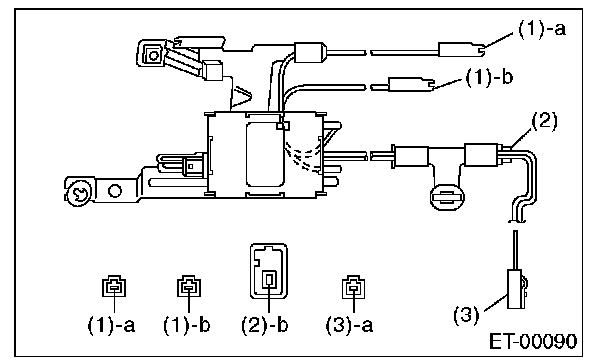

Wagon model
