Rear Speaker

Rear Speaker

REMOVAL

1. Disconnect the ground cable from the battery.
2. Remove the rear door trim.

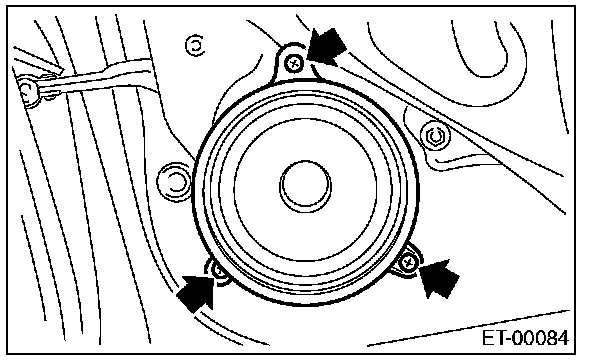

3. Remove the rear speaker mounting screws.






CAUTION: Do not disassemble the rear speaker of premium audio system.






4. Disconnect the harness connector and remove the rear speaker.

INSTALLATION

Install in the reverse order of removal.
