Removal

Reservoir Tank

REMOVAL

1) Drain fluid from the reservoir tank.
2) Disconnect the hose from reservoir tank.

CAUTION:
To prevent foreign matter from entering the hose and pipe, cover the open ends of them with clean cloth.

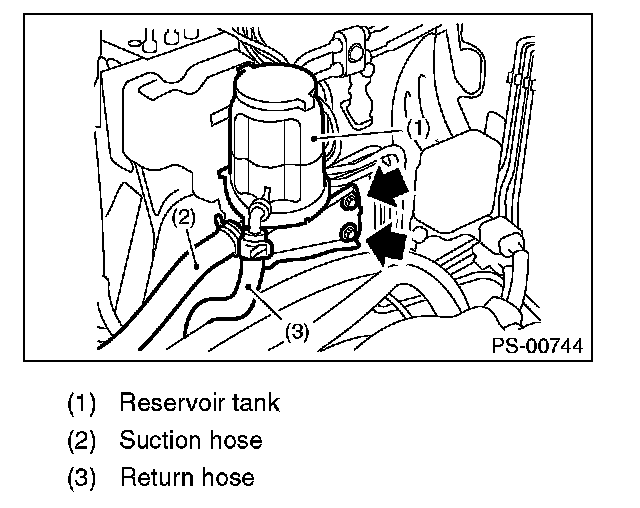

3) Remove the bolt and remove the reservoir tank from the body.

CAUTION:
Do not separate the reserve tank and bracket.
