Inspection

INSPECTION

Check for wear, damage or any other faults. Replace as necessary.

Service limit:

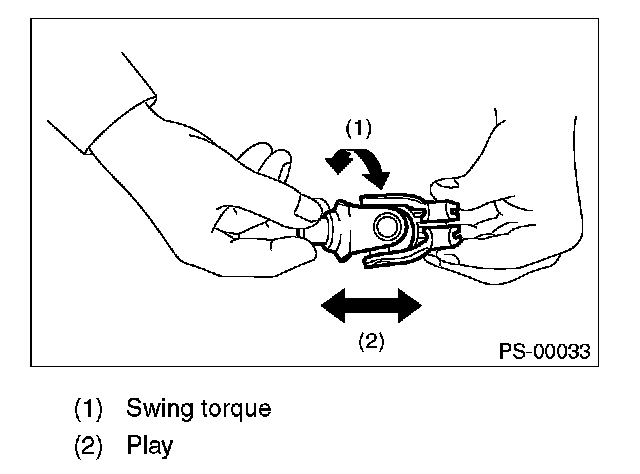

Universal joint play:
0 mm (0 in)

Maximum swing torque:
0.3 N (0.03 kgf, 0.07 lb)

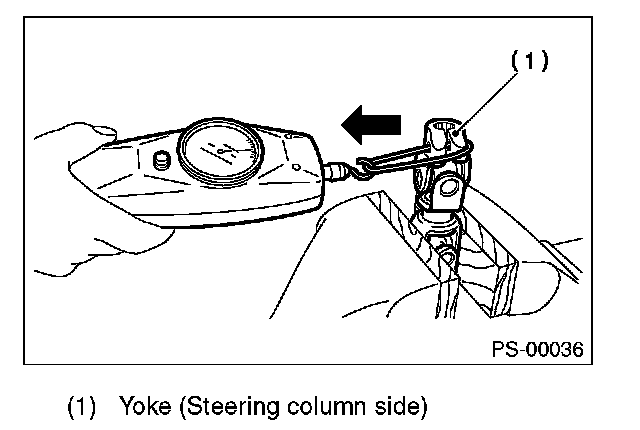

Measure the swing torque of universal joint.

Service limit:
Maximum load:
3.8 N (0.39 kgf, 0.86 lb) or less

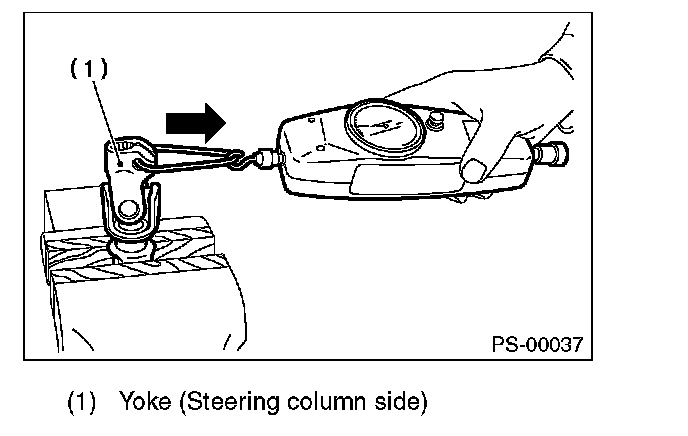

Service limit:
Maximum load:
3.8 N (0.39 kgf, 0.86 lb) or less

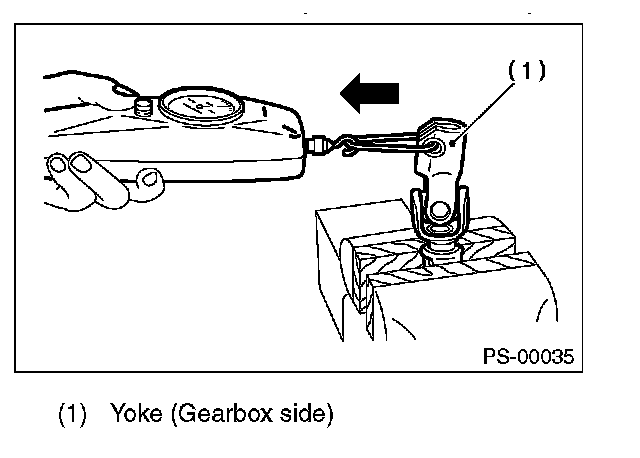

Service limit:
Maximum load:
7.3 N (0.74 kgf, 1.64 lb) or less

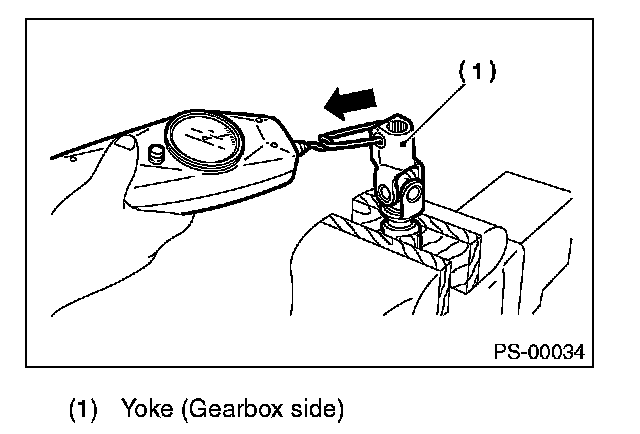

Service limit:
Maximum load:
7.3 N (0.74 kgf, 1.64 lb) or less
